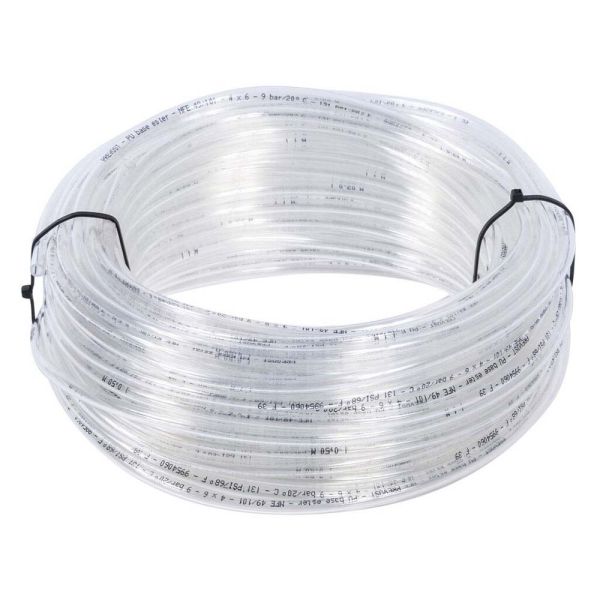

Polyamide Clear Tube
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Material: Polyamide
- Colour: Clear
- Temperature: -20° to + 80°C
| Product Code | ID/OD (mm) | Mini Bend Radius (mm) | Max Operating Pressure @ 20°C (BAR) |
| 407112 | 2 x 4 | 25 | 30 |
| 407118 | 2.7 x 4 | 30 | 15 |
| 407124 | 3 x 5 | 30 | 24 |
| 407127 | 4 x 6 | 35 | 27 |
| 407133 | 6 x 8 | 55 | 19 |
| 407139 | 8 x 10 | 90 | 15 |
| 407145 | 10 x 12 | 92 | 11 |
| 407148 | 12 x 14 | 120 | 9.5 |
| 407151 | 13 x 16 | 115 | 13 |
| 407154 | 2 x 4 | 25 | 30 |
| 407160 | 2.7 x 4 | 30 | 15 |
| 407166 | 3 x 5 | 30 | 24 |
| 407169 | 4 x 6 | 35 | 27 |
| 407175 | 6 x 8 | 55 | 19 |
| 407181 | 8 x 10 | 90 | 15 |
| 407187 | 10 x 12 | 92 | 11 |
| 407190 | 12 x 14 | 120 | 9.5 |
| 407193 | 13 x 16 | 115 | 13 |
| 407196 | 8 x 10 | 90 | 15 |
| 407202 | 6 x 8 | 55 | 19 |
| 407208 | 2.7 x 4 | 30 | 15 |
| 407214 | 4 x 6 | 35 | 27 |
