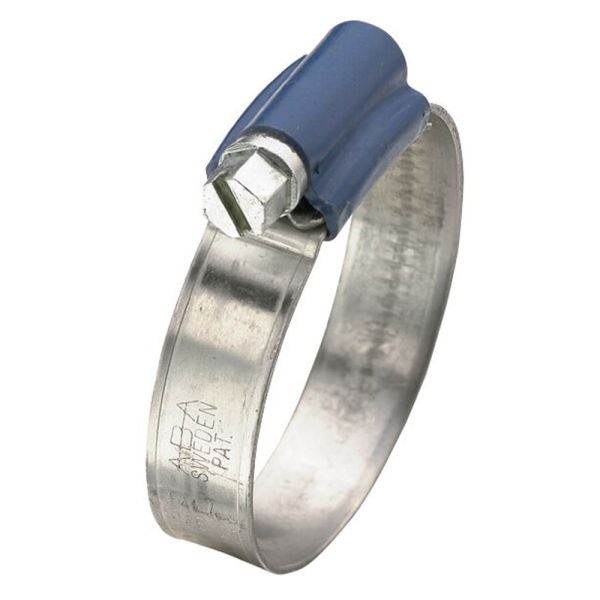

Standard Clamp 12mm Band

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Manufacturer: Prevost
  • Material: Treated Zinc-plated Steel



Product Code Ø min./max. (mm) Tightening Screw (Nm) Band Width (mm) Per Pack
407636 15 - 24 4 - 4.5 12 50
407637 19 - 28 4 - 4.5 12 50
407638 22 - 32 4 - 4.5 12 50
407639 26 - 38 4 - 4.5 12 25
407640 32 - 44 5 - 6 12 25
407641 38 - 50 5 - 6 12 25
407642 44 - 56 5 - 6 12 25
407643 50 - 65 5 - 6 12 25
407644 58 - 75 5 - 6 12 1
407645 68 - 85 5 - 6 12 1
407646 77 - 95 5 - 6 12 1
 407647 87 - 112  5 - 6  12  1
 407648 104 - 138  5 - 6  12  1
 407649 130 - 165  5 - 6  12  1
 407650 150 - 180  5 - 6  12  1
 407651 175 - 205  5 - 6  12  1
 407652 200 - 231  5 - 6  12  1
 407653 226 - 256  5 - 6  12  1
 407654 251 - 282  5 - 6  12  1
 407655 277 - 307  5 - 6  12  1



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
407636PV Standard Clamp 12mm Band 15mm - 24mm x 50 £74.10 34%
£48.91
407637PV Standard Clamp 12mm Band 19mm - 28mm x 50 £75.40 34%
£49.76
407638PV Standard Clamp 12mm Band 22mm - 32mm x 50 £81.90 34%
£54.05
407639PV Standard Clamp 12mm Band 26mm - 38mm x 25 £41.93 34%
£27.67
407640PV Standard Clamp 12mm Band 32mm - 44mm x 25 £46.80 34%
£30.89
407641PV Standard Clamp 12mm Band 38mm - 50mm x 25 £48.10 34%
£31.75
407642PV Standard Clamp 12mm Band 44mm - 56mm x 25 £49.08 34%
£32.39
407643PV Standard Clamp 12mm Band 50mm - 65mm x 25 £56.55 34%
£37.32
407644PV Standard Clamp 12mm Band 58mm - 75mm x 25 £62.40 34%
£41.18
407645PV Standard Clamp 12mm Band 68mm - 85mm £2.61 34%
£1.72
407646PV Standard Clamp 12mm Band 77mm - 95mm £2.85 34%
£1.88
407647PV Standard Clamp 12mm Band 87mm - 112mm £3.08 34%
£2.03
407648PV Standard Clamp 12mm Band 104mm - 138mm £3.33 34%
£2.20
407649PV Standard Clamp 12mm Band 130mm - 165mm £3.87 34%
£2.55
407650PV Standard Clamp 12mm Band 150mm - 180mm £4.63 34%
£3.06
407651PV Standard Clamp 12mm Band 175mm - 205mm £5.16 34%
£3.41
407652PV Standard Clamp 12mm Band 200mm - 231mm £5.90 34%
£3.89
407653PV Standard Clamp 12mm Band 226mm - 256mm £6.51 34%
£4.30
407654PV Standard Clamp 12mm Band 251mm - 282mm £7.42 34%
£4.90
407655PV Standard Clamp 12mm Band 277mm - 307mm £7.98 34%
£5.27
