Prevost Large Rubber Hose
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Suitable For: Compressed Air
- Hose Material: Rubber
- Case Material: Epoxy Coated Steel
- Max Operating Pressure: 12 bar
- Operating Temperature: -15°C to +40°C
- Features: Pipe locked with ratchet stop
- Includes fixed bracket
- Includes quick coupling
- Includes 1m inlet supply hose
| Product Code | ID / OD (mm) | Length (m) | Coupling | Flow Rate (l/min) | Swivel Inlet (BSPP) | Weight (kg) |
| 407037 | 10 x 17 | 25 | Euro 7.4mm (ESI 07) | 500 | 3/8" F | 26 |
| 407038 | 13 x 20 | 20 | Euro 7.4mm (ESI 07) | 1000 | 1/2" M | 27 |
| 407039 | 16 x 23 | 10 | Euro 10.4mm (ESI 11EB) | 3000 | 1/2" M | 27 |
| 407040 | 10 x 17 | 25 | ISO C 6mm (CSI 06) | 500 | 3/8" F | 26 |
| 407041 | 13 x 20 | 20 | ISO C 8mm (CSI 08) | 1000 | 1/2" M | 27 |

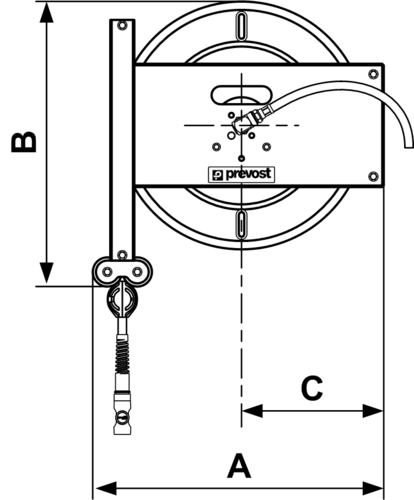

| Product Code | A (mm) | B (mm) | C (mm) |
| 407037 | 485 | 475 | 237 |
| 407038 | 485 | 475 | 237 |
| 407039 | 485 | 475 | 237 |
| 407040 | 485 | 475 | 237 |
| 407041 | 485 | 475 | 237 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
