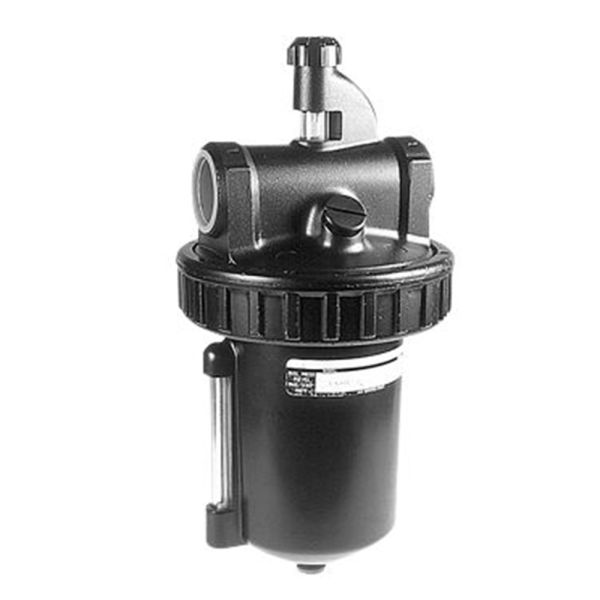

MAX Lubricator

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Manufacturer: Prevost
  • Material: ZAMAK Alloy
  • Temperature: +0°C to +70°C
  • Operating Pressure: 17 bar
  • Equipped With Manual Drain
  • Filtration: 40µm

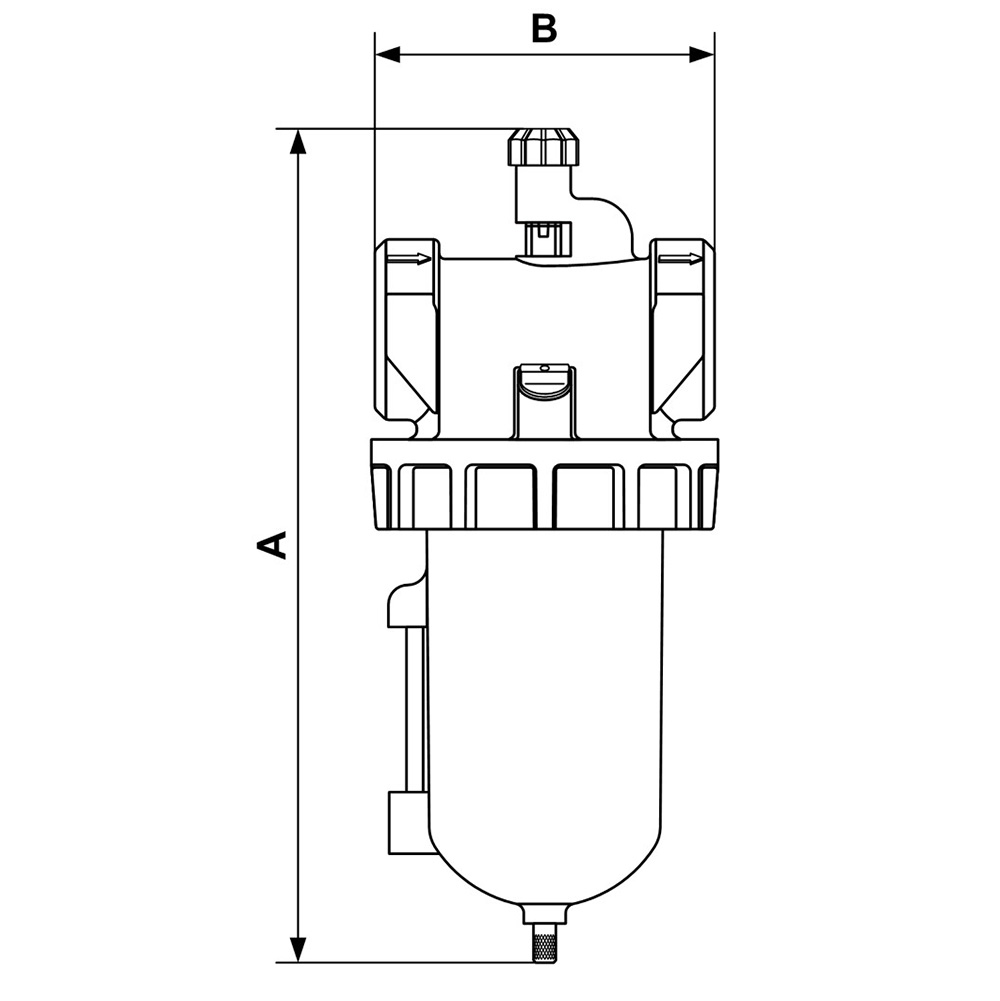

Product Code A (mm) B (mm) Capacity (de la cuve - l) Flow rate (l/min at 7 bar ΔP : 1bar)
408351 286 122 0.48 17000
408352 330 140 0.77 28000



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
408351PV Female MAX Lubricator 1 1/2" £581.71 34%
£383.93
