Drain Valve Parts
Useful Information

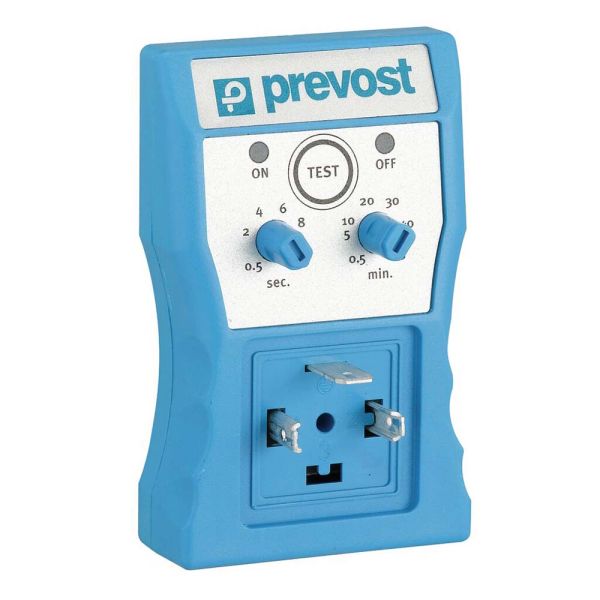

Key Features / Tech Specs:
- Manufacturer: Prevost
- Drain cycle: 0.5 - 45 min
- Drain opening: 0.5 - 10 sec
- ID Passage: 4.5 mm
- Operating Pressure: 0 - 16 bar
- Temperature: +2°C to +55°C
| Product Code | Description | Female BSPP |
| 408776 | Timer | 24V-50/60HZ |
| 408777 | Solenoid valve with 220 V coil | - |
| 408778 | Solenoid valve with 220 V coil | - |
| 408779 | Coil | 48V-50/60HZ |
| 408780 | Coil | 110V-50/60HZ |
| 408781 | Coil | 220V-50/60HZ |
| 408782 | Coil 50-60Hz Alternative Standard Voltage 220V | - |
| 408783 | High-Pressure Solenoid 0 to 40 Bar | - |
| 408784 | 304 Stainless Steel Solenoid | - |
| 408785 | Drain Trap With Shut-Off Valve | - |
| 408786 | Power Connector | - |
Dimensions:
| Product Code | Length (mm) | Height (mm) |
| 408776 | 43 | 74 |
| 408777 | - | - |
| 408778 | - | - |
| 408779 | 41 | 53 |
| 408780 | 41 | 53 |
| 408781 | 41 | 53 |
| 408782 | 41 | 53 |
| 408783 | 74 | 40 |
| 408784 | 74 | 40 |
| 408785 | 77 | 48 |
| 408786 | 45 | 25 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
