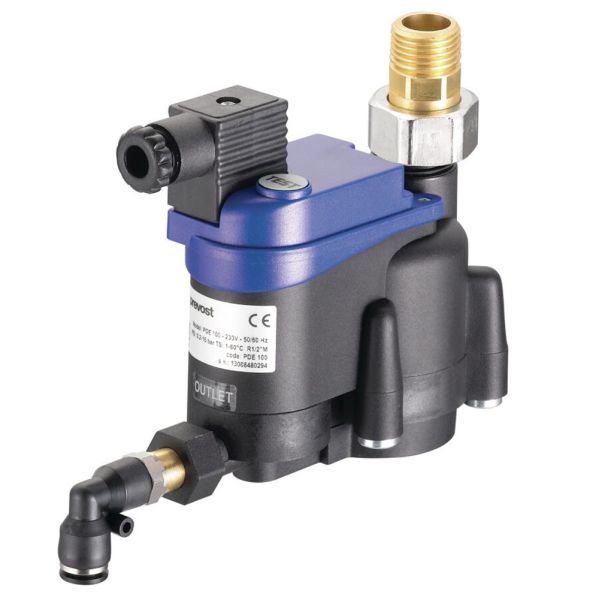

Automatic Drain Thread
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Operating Pressure: 0.2 to 16
- Temperature: +1°C to +60°C
- Supply voltage: 230 V AC
- ID Passage: 4.5 mm
- Drain opening: 0.5 - 10 sec
- Protection rating: IP 65
- Removal capacity (l/h):5
| Product Code | Description | Outlet Ø (mm) | Inlet BSPT male thread |
| 408787 | - | 8 | 1/2 |
| 408788 | Repair kit for PDE 100 automatic drain |
| Product Code | Length (mm) | Height (mm) |
| 408787 | 155.2 | 121.9 |
