Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088)
Molybdenum Content: Minimum 2.3%
Bend Angle: 30°
Applications: Drinking water installations, industrial systems, sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High resistance to corrosion due to the elevated molybdenum content, suitable for aggressive environments
Indicator Ring: Blue, for quick identification and system compatibility
Description

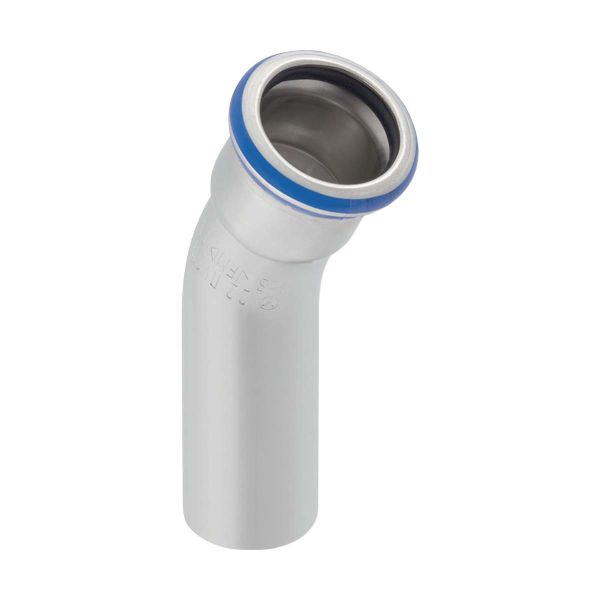

The Geberit Mapress Stainless Steel Stem Elbow 30° is designed to facilitate a reliable 30° directional change in pipe systems while ensuring optimal performance and durability. This fitting is ideal for installations requiring high levels of corrosion resistance and hygiene, making it perfect for drinking water installations, industrial systems, and demanding environments with aggressive liquids. The stem design ensures a secure fit, while the stainless steel construction guarantees long-lasting performance even under high pressures and temperatures.
Key Features
High Molybdenum Content: Manufactured from CrNiMo steel 1.4401 with a minimum molybdenum content of 2.3%, providing exceptional corrosion resistance and long-term durability.
Versatile Applications: Suitable for drinking water systems, industrial installations, and approved for use in sprinkler systems, including ‘wet’, ‘wet/dry’, and ‘dry’ applications.
Hygienic Design: Engineered to meet the highest hygiene standards, it can withstand thermal and chemical disinfection processes where required.
Leakproof Protection: Comes fitted with a leakproof plug, protecting the fitting from dust and dirt until it is ready for installation.
Comprehensive System Compatibility: Seamlessly integrates with the Geberit Mapress Stainless Steel system, offering a versatile range of adaptors and fittings.
Easy Identification: The blue indicator ring allows for easy identification of the fitting material and ensures proper installation.
SKU
Article Number
DN
d
arc
L
H
Z
487719
36131
12
15 mm
30 °
3.3 cm
4.3 cm
1.3 cm
487720
36133
20
22 mm
30 °
3.7 cm
4.6 cm
1.6 cm
487721
36134
25
28 mm
30 °
4.1 cm
4.8 cm
1.8 cm
487722
36135
32
35 mm
30 °
3.7 cm
4.6 cm
1.1 cm
487723
36136
40
42 mm
30 °
4.4 cm
5.4 cm
1.4 cm
487724
36137
50
54 mm
30 °
5.2 cm
6.3 cm
1.7 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
