Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088)
Molybdenum Content: Minimum 2.3%
Bend Angle: 15°
Applications: Drinking water installations, industrial systems, and sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: Elevated corrosion resistance due to the high molybdenum content
Indicator Ring: Blue, for easy identification and system integrity
Description

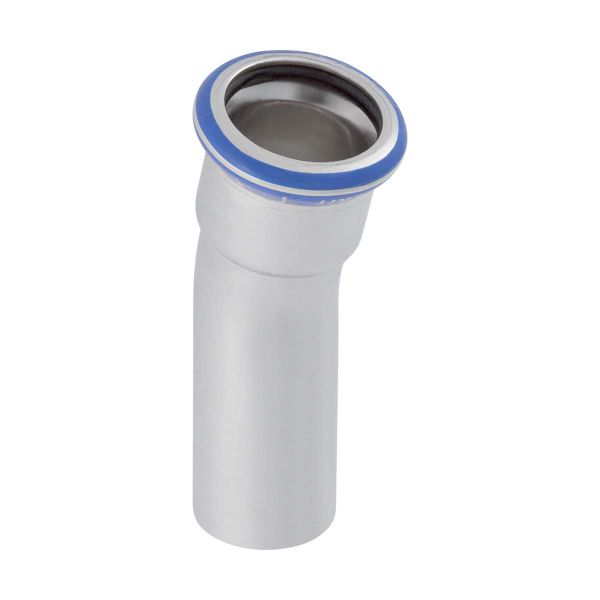

The Geberit Mapress Stainless Steel Stem Elbow 15° is designed for precise 15° directional changes in piping systems, ensuring efficient flow while maintaining system integrity. It is ideal for use in environments with demanding hygiene and corrosion resistance requirements, such as drinking water installations, industrial systems, and sprinkler installations. The stem design guarantees a secure connection, making it suitable for both surface-mounted and concealed applications.
Key Features
High Molybdenum Content: Crafted from CrNiMo steel 1.4401, with a minimum molybdenum content of 2.3%, providing exceptional resistance to corrosion and ensuring long-term performance in challenging environments.
Versatile Applications: Suitable for drinking water installations, industrial systems, and approved for use in sprinkler systems, including ‘wet’, ‘wet/dry’, and ‘dry’ setups.
Hygienic Design: Ideal for applications with strict hygiene requirements, and compatible with both thermal and chemical disinfection processes.
Leakproof Protection: Supplied with a leakproof plug to protect the fitting from dust and debris, ensuring a clean and reliable installation.
Comprehensive System Compatibility: Fully compatible with the extensive Geberit Mapress Stainless Steel system, offering seamless integration with a wide range of fittings and adaptors.
Easy Identification: Features a blue indicator ring for quick identification and proper system installation.
SKU
Article Number
DN
d
arc
L
H
Z
487713
36111
12
15 mm
15 °
3 cm
4 cm
1 cm
487714
36113
20
22 mm
15 °
3.3 cm
4.1 cm
1.2 cm
487715
36114
25
28 mm
15 °
3.6 cm
4.3 cm
1.3 cm
487716
36115
32
35 mm
15 °
3.2 cm
4.1 cm
0.6 cm
487717
36116
40
42 mm
15 °
3.7 cm
4.7 cm
0.7 cm
487718
36117
50
54 mm
15 °
4.4 cm
5.5 cm
0.9 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
