Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Seal Ring: CIIR (Chlorobutyl) black
Molybdenum Content: Minimum 2.3%
Design: Concentric reducing tee for smooth pipe size transitions
Applications: Drinking water installations, industrial systems, and sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High resistance to corrosion due to the elevated molybdenum content, ensuring long-term performance
Protection Plug: Supplied with a transparent plug to protect pressing sockets from contamination during transport and storage
Description

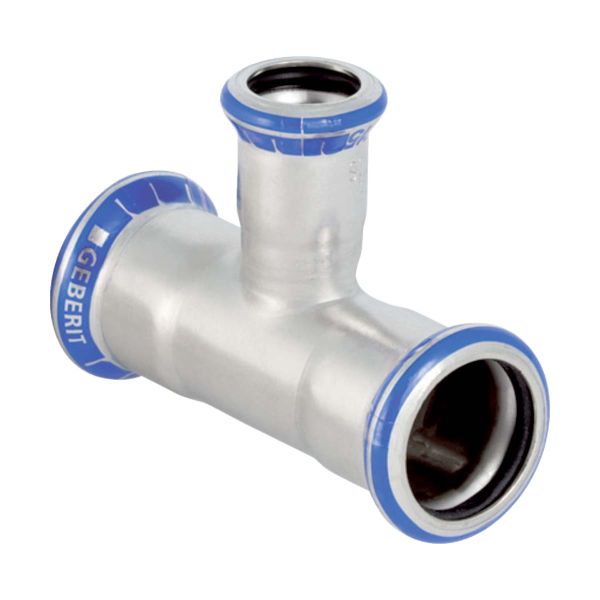

The Geberit Mapress Stainless Steel Reducing Tee is designed to connect three pipes of different diameters within press-fit systems, allowing for efficient transitions and flow control between various pipe sizes. It is ideal for use in drinking water installations, industrial systems, and sprinkler systems. With its high corrosion resistance and hygienic properties, the reducing tee ensures reliable performance in systems exposed to high temperatures, pressures, and aggressive liquids.
Key Features
Pressing Indicator: Comes with a visible pressing indicator to show if the connection has been properly pressed, ensuring leakproof connections and system safety.
Seal Ring: Equipped with a CIIR (Chlorobutyl) black seal ring, providing a leakproof and durable connection even under high pressure or temperature conditions.
Leakproof Protection: Supplied with a transparent protection plug to prevent contamination from dust and dirt, ensuring a clean and secure installation.
High Molybdenum Content: Manufactured from CrNiMo steel 1.4401 with a minimum molybdenum content of 2.3%, offering superior corrosion resistance, especially in aggressive and high-moisture environments.
Concentric Reducing Design: Facilitates smooth transitions between pipes of varying diameters, ensuring balanced flow and preventing turbulence in the system.
Versatile Applications: Suitable for use in drinking water installations, industrial applications, and approved for use in sprinkler systems (wet, wet/dry, and dry). It supports both thermal and chemical disinfection, making it ideal for hygienic environments.
Comprehensive System Compatibility: Fully compatible with the Geberit Mapress Stainless Steel system, providing seamless integration with a wide range of fittings and adaptors for various applications.
Fire-Safe Installation: No need for welding or soldering, making the installation process safer and faster while eliminating fire hazards.
SKU
Article Number
DN
d
d1
d2
arc
L
L1
I
I2
Z
Z1
Z2
487678
31204
15 / 12
18 mm
15 mm
18 mm
90 °
6.8 cm
4.1 cm
3.4 cm
3.4 cm
1.4 cm
2.1 cm
1.4 cm
487681
31206
20 / 12
22 mm
15 mm
22 mm
90 °
7.4 cm
4.3 cm
3.7 cm
3.7 cm
1.6 cm
2.3 cm
1.6 cm
487682
31207
20 / 15
22 mm
18 mm
22 mm
90 °
7.4 cm
4.3 cm
3.7 cm
3.7 cm
1.6 cm
2.3 cm
1.6 cm
487677
31208
15 / 12
18 mm
15 mm
15 mm
90 °
7.9 cm
4.1 cm
3.4 cm
4.5 cm
1.4 cm
2.1 cm
2.5 cm
487685
31209
25 / 12
28 mm
15 mm
28 mm
90 °
8.4 cm
4.6 cm
4.2 cm
4.2 cm
1.9 cm
2.6 cm
1.9 cm
487684
31210
25 / 15
28 mm
18 mm
28 mm
90 °
8.4 cm
4.6 cm
4.2 cm
4.2 cm
1.9 cm
2.6 cm
1.9 cm
487686
31211
25 / 20
28 mm
22 mm
28 mm
90 °
8.4 cm
4.7 cm
4.2 cm
4.2 cm
1.9 cm
2.6 cm
1.9 cm
487689
31212
32 / 12
35 mm
15 mm
35 mm
90 °
10 cm
4.9 cm
5 cm
5 cm
2.4 cm
2.9 cm
2.4 cm
487690
31213
32 / 15
35 mm
18 mm
35 mm
90 °
10 cm
4.9 cm
5 cm
5 cm
2.4 cm
2.9 cm
2.4 cm
487691
31214
32 / 20
35 mm
22 mm
35 mm
90 °
10 cm
5 cm
5 cm
5 cm
2.4 cm
2.9 cm
2.4 cm
487692
31215
32 / 25
35 mm
28 mm
35 mm
90 °
10 cm
5.3 cm
5 cm
5 cm
2.4 cm
3 cm
2.4 cm
487695
31216
40 / 12
42 mm
15 mm
42 mm
90 °
11.4 cm
5.3 cm
5.7 cm
5.7 cm
2.7 cm
3.3 cm
2.7 cm
487696
31217
40 / 15
42 mm
18 mm
42 mm
90 °
11.4 cm
5.3 cm
5.7 cm
5.7 cm
2.7 cm
3.3 cm
2.7 cm
487697
31218
40 / 20
42 mm
22 mm
42 mm
90 °
11.4 cm
5.4 cm
5.7 cm
5.7 cm
2.7 cm
3.3 cm
2.7 cm
487698
31219
40 / 25
42 mm
28 mm
42 mm
90 °
11.4 cm
5.7 cm
5.7 cm
5.7 cm
2.7 cm
3.4 cm
2.7 cm
487699
31220
40 / 32
42 mm
35 mm
42 mm
90 °
11.4 cm
6.1 cm
5.7 cm
5.7 cm
2.7 cm
3.5 cm
2.7 cm
487700
31221
50 / 12
54 mm
15 mm
54 mm
90 °
13.8 cm
5.9 cm
6.9 cm
6.9 cm
3.4 cm
3.9 cm
3.4 cm
487701
31222
50 / 15
54 mm
18 mm
54 mm
90 °
13.8 cm
5.9 cm
6.9 cm
6.9 cm
3.4 cm
3.9 cm
3.4 cm
487702
31223
50 / 20
54 mm
22 mm
54 mm
90 °
13.8 cm
6 cm
6.9 cm
6.9 cm
3.4 cm
3.9 cm
3.4 cm
487703
31224
50 / 25
54 mm
28 mm
54 mm
90 °
13.8 cm
6.3 cm
6.9 cm
6.9 cm
3.4 cm
4 cm
3.4 cm
487704
31225
50 / 32
54 mm
35 mm
54 mm
90 °
13.8 cm
6.7 cm
6.9 cm
6.9 cm
3.4 cm
4.1 cm
3.4 cm
487705
31226
50 / 40
54 mm
42 mm
54 mm
90 °
13.8 cm
7.1 cm
6.9 cm
6.9 cm
3.4 cm
4.1 cm
3.4 cm
487679
31227
20 / 12 / 15
22 mm
15 mm
18 mm
90 °
8.5 cm
4.3 cm
3.7 cm
4.8 cm
1.6 cm
2.3 cm
2.8 cm
487680
31228
20 / 15
22 mm
18 mm
18 mm
90 °
8.5 cm
4.3 cm
3.7 cm
4.8 cm
1.6 cm
2.3 cm
2.8 cm
487683
31234
25 / 20
28 mm
22 mm
22 mm
90 °
9 cm
4.7 cm
4.2 cm
4.8 cm
1.9 cm
2.6 cm
2.7 cm
487687
31235
32 / 20 / 25
35 mm
22 mm
28 mm
90 °
10.4 cm
5 cm
5 cm
5.4 cm
2.4 cm
2.9 cm
3.1 cm
487688
31242
32 / 25
35 mm
28 mm
28 mm
90 °
10.4 cm
5.3 cm
5 cm
5.4 cm
2.4 cm
3 cm
3.1 cm
487693
31243
40 / 20 / 32
42 mm
22 mm
35 mm
90 °
11.5 cm
5.4 cm
5.7 cm
5.8 cm
2.7 cm
3.3 cm
3.2 cm
487694
31251
40 / 25 / 32
42 mm
28 mm
35 mm
90 °
11.5 cm
5.7 cm
5.7 cm
5.8 cm
2.7 cm
3.4 cm
3.2 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
