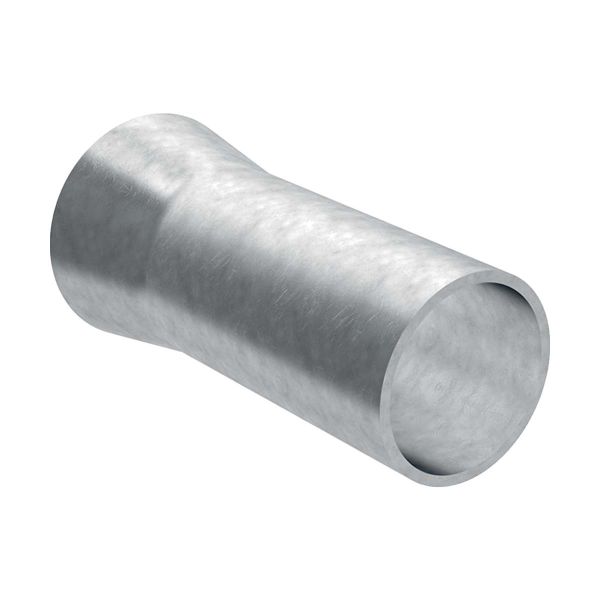

The Geberit Mapress Stainless Steel Plain Adaptor with Weld-on End is a versatile fitting designed for creating secure and durable transitions between press-fit piping systems and components that require welding. This adaptor is ideal for applications that require high corrosion resistance, hygiene, and stability, making it suitable for drinking water installations, industrial piping systems, and applications in demanding environments. Its weld-on end ensures a robust connection, adding strength and reliability to any pipeline configuration.
Key Features
High-Quality Material: Manufactured from CrNiMo steel 1.4404 (EN 10088), this adaptor offers excellent corrosion resistance, making it suitable for aggressive environments, chemical handling, and systems exposed to high moisture or demanding conditions.
Reliable Weld-on End: The weld-on end is designed for easy and secure welding to other components, ensuring a strong and permanent connection that can withstand high pressures and temperatures.
Corrosion-Resistant: Made with a high molybdenum content, this stainless steel material provides enhanced resistance to corrosion and pitting, making it ideal for long-term use in harsh conditions and hygienic installations.
Seamless Integration: Allows for a seamless transition between press-fit piping systems and welded components, offering flexibility in complex installations that require both types of connections.
Hygienic and Safe: The stainless steel construction meets stringent hygiene standards, making it suitable for drinking water systems, food processing facilities, and pharmaceutical environments.
Durable and Long-Lasting: The high-grade CrNiMo steel construction ensures durability and stability, reducing maintenance needs and extending the system’s lifespan.
Versatile Applications: Ideal for a wide range of applications, including residential, commercial, and industrial piping systems, where both press-fit and weld-on connections are needed for optimal performance.
SKU
Article Number
DN
d (mm)
d1 (mm)
s (mm)
H (cm)
h (cm)
487608
32412
12
15
17.2
1
4.5
3.4
487609
32413
15
18
21.3
1
5
3.7
487610
32414
20
22
26.9
1.2
5.5
3.9
487611
32415
25
28
33.7
1.2
5.5
3.9
487612
32416
32
35
42.4
1.5
6.5
4.4
487613
32417
40
42
48.3
1.5
7.5
5.4
487614
32418
50
54
60.3
1.5
8
5.8
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
