Design: Non-return valve with pressing indicator and protective transparent plug
Applications: Drinking water installations, industrial piping, systems requiring unidirectional flow
Connection Technology: Press-fitting system with easy identification for installation assurance
Description

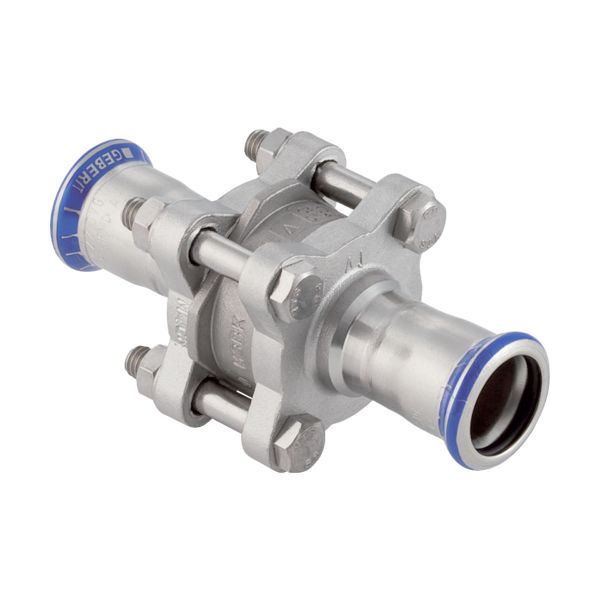

The Geberit Mapress Stainless Steel Non-Return Valve is designed to ensure unidirectional flow in piping systems, preventing backflow and safeguarding the integrity of the system. This valve is ideal for drinking water installations, industrial applications, and systems that require high corrosion resistance and reliability. Constructed from durable materials and designed for ease of installation, this non-return valve is a dependable choice for both residential and commercial setups.
Key Features
High-Quality Stainless Steel Construction: Made from CrNiMo steel 1.4401 (EN 10088), this valve is highly resistant to corrosion, making it suitable for demanding environments and applications with aggressive media.
PTFE Seals for Enhanced Durability:
Valve Seal: Made of PTFE (polytetrafluoroethylene), providing excellent resistance to high temperatures, chemicals, and wear, ensuring a reliable and durable seal.
Flange Section Seal: Also made of PTFE, enhancing the valve’s leakproof performance and longevity.
Pressing Indicator: Equipped with a pressing indicator to visually verify whether the connection is unpressed, allowing for easy and secure installation and reducing the risk of leaks.
Leakproof Seal Ring: Includes a CIIR (chlorobutyl rubber) black seal ring that provides a leakproof seal, adding an extra layer of protection and ensuring the system remains secure.
Transparent Protection Plug: Supplied with a transparent protection plug to prevent dust and debris from contaminating the pressing socket during transport and installation, ensuring a clean and safe connection.
Wide Operating Temperature Range: Operates efficiently between -20 and +120 °C, making it versatile for a variety of applications, including both hot and cold water systems.

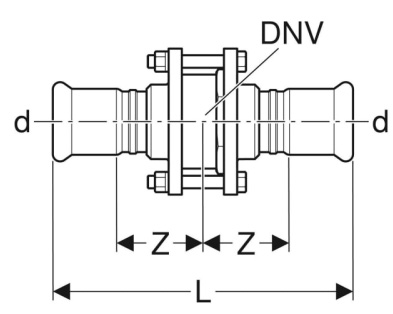

SKU
Article Number
DN
DNV
d (mm)
L (cm)
Z (cm)
PN (bar)
487593
92140
12
15
15
11.1
3.8
40
487594
92142
20
20
22
12
3.9
40
487595
92143
25
25
28
12.6
4
16
487596
92144
32
32
35
14.7
4.8
16
487597
92145
40
40
42
16.7
5.3
16
487598
92146
50
50
54
18.5
5.8
16
487599
92147
65
65
76.1
25.5
7.5
16
487600
92148
80
80
88.9
28.5
8.3
16
487601
92149
100
100
108
34.6
9.8
16
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
