Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088), CrNi steel nut
Seal Ring: CIIR (Chlorobutyl) black
Flat Gasket: EPDM, suitable for media temperatures between 0°C and 100°C
Molybdenum Content: Minimum 2.3%
Corrosion Resistance: Exceptional corrosion resistance due to the high molybdenum content, ensuring long-lasting durability in challenging environments
Protection Plug: Supplied with a transparent plug to protect pressing sockets during transport and storage
Description

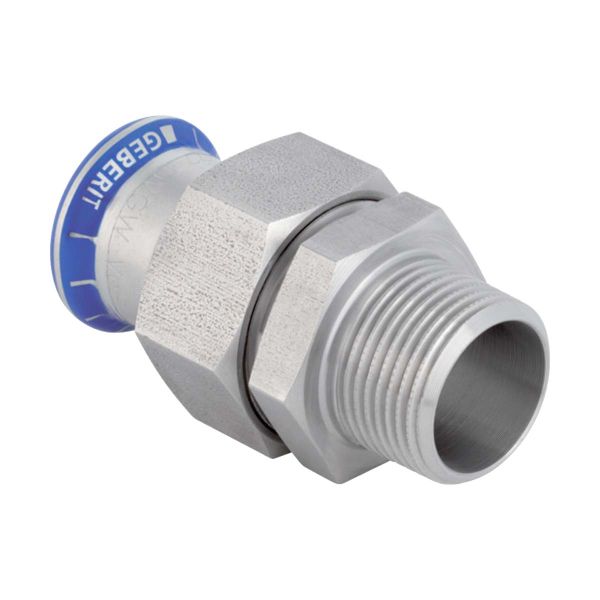

The Geberit Mapress Stainless Steel Male Threaded Union with CrNi Steel Nut is designed to create secure, leakproof connections between press-fit stainless steel systems and male threaded components. This union is ideal for applications requiring high corrosion resistance and durability, such as potable water systems, heating and cooling installations, industrial systems, and sprinkler networks. With its CrNi steel nut, this union offers a reliable screw connection and can easily be disassembled and reassembled when needed, making it suitable for systems that require regular maintenance or flexibility.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
R
G
L
H
487564
35360
12 / 15
15 mm
1/2 ″
3/4 ″
6.4 cm
4.4 cm
487565
35361
12 / 20
15 mm
3/4 ″
3/4 ″
6.6 cm
4.6 cm
487566
35362
15
18 mm
1/2 ″
3/4 ″
6.4 cm
4.4 cm
487567
35363
15 / 20
18 mm
3/4 ″
3/4 ″
6.6 cm
4.6 cm
487568
35364
20 / 15
22 mm
1/2 ″
1 ″
6.7 cm
4.6 cm
487569
35365
20
22 mm
3/4 ″
1 ″
6.8 cm
4.7 cm
487570
35366
20 / 25
22 mm
1 ″
1 ″
7.3 cm
5.2 cm
487571
35367
25
28 mm
1 ″
1 1/4 ″
7.8 cm
5.5 cm
487572
35368
32
35 mm
1 1/4 ″
1 1/2 ″
8.5 cm
5.9 cm
487573
35369
40
42 mm
1 1/2 ″
1 3/4 ″
9 cm
6 cm
487574
35370
50
54 mm
2 ″
2 3/8 ″
10.3 cm
6.8 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
