Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088) with brass union nut
Seal Ring: CIIR (Chlorobutyl) black
Flat Gasket: EPDM, suitable for media temperatures between 0°C and 100°C
Molybdenum Content: Minimum 2.3%
Corrosion Resistance: High corrosion resistance due to the elevated molybdenum content, ensuring long-lasting durability in aggressive or corrosive environments
Protection Plug: Delivered with a transparent plug to protect the pressing socket during transport and storage
Description

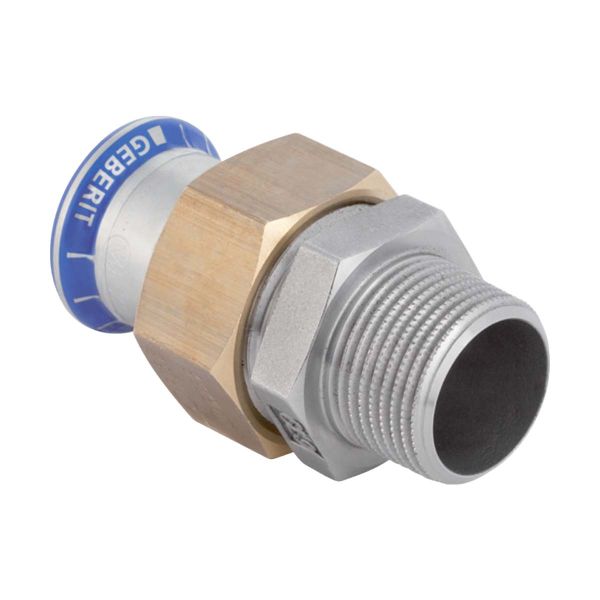

The Geberit Mapress Stainless Steel Male Threaded Union with Brass Nut is designed to provide a secure and reliable connection between press-fit stainless steel systems and threaded components. Ideal for drinking water installations, industrial systems, and applications exposed to high temperatures and pressures, this union offers durability, corrosion resistance, and flexibility. With a brass union nut and a flat EPDM gasket, it ensures a leakproof seal and easy disassembly for maintenance or reconfiguration.
Key Features
Pressing Indicator: Equipped with a visible pressing indicator to confirm the correct pressing of the fitting, ensuring a leakproof and secure connection.
Seal Ring: Features a CIIR (Chlorobutyl) black seal ring, offering durable and reliable sealing, even in high-pressure and high-temperature applications.
Flat Gasket: Includes an EPDM flat gasket, designed to withstand media temperatures from 0°C to 100°C, providing excellent sealing properties for various fluid systems.
Brass Union Nut: The union nut is made of brass, providing strong, corrosion-resistant performance in threaded connections, allowing for easy disassembly and reassembly.
Leakproof Protection: Comes with a transparent protection plug to keep the pressing socket clean and free from contaminants during transport and storage, ensuring a secure installation.
High Molybdenum Content: Made from CrNiMo steel 1.4401, with a minimum molybdenum content of 2.3%, offering enhanced corrosion resistance, particularly in aggressive environments such as industrial or marine applications.
Versatile Applications: Suitable for use in drinking water installations, heating and cooling systems, industrial systems, and sprinkler systems (wet, wet/dry, and dry). It supports both thermal and chemical disinfection.
Fire-Safe Installation: No welding or soldering is required, which makes the installation process quicker and safer, eliminating the risk of fire hazards.
SKU
Article Number
DN
d
R
G
L
H
487575
35330
12 / 15
15 mm
1/2 ″
3/4 ″
6.4 cm
4.4 cm
487576
35331
12 / 20
15 mm
3/4 ″
3/4 ″
6.6 cm
4.6 cm
487577
35332
15
18 mm
1/2 ″
3/4 ″
6.4 cm
4.4 cm
487578
35333
15 / 20
18 mm
3/4 ″
3/4 ″
6.6 cm
4.6 cm
487579
35334
20 / 15
22 mm
1/2 ″
1 ″
6.7 cm
4.6 cm
487580
35335
20
22 mm
3/4 ″
1 ″
6.8 cm
4.7 cm
487581
35336
20 / 25
22 mm
1 ″
1 ″
7.3 cm
5.2 cm
487582
35337
25
28 mm
1 ″
1 1/4 ″
7.8 cm
5.5 cm
487583
35338
32
35 mm
1 1/4 ″
1 1/2 ″
8.5 cm
5.9 cm
487584
35339
40
42 mm
1 1/2 ″
1 3/4 ″
9 cm
6 cm
487585
35340
50
54 mm
2 ″
2 3/8 ″
10.3 cm
6.8 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
