Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Seal Ring: CIIR (Chlorobutyl) black
Molybdenum Content: Minimum 2.3%
Thread Type: Male threaded tee for secure threaded connections
Applications: Drinking water installations, industrial systems, and sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High resistance to corrosion due to elevated molybdenum content, ensuring long-term performance in aggressive environments
Protection Plug: Supplied with a transparent plug to protect the pressing socket from contamination during transport and storage
Description

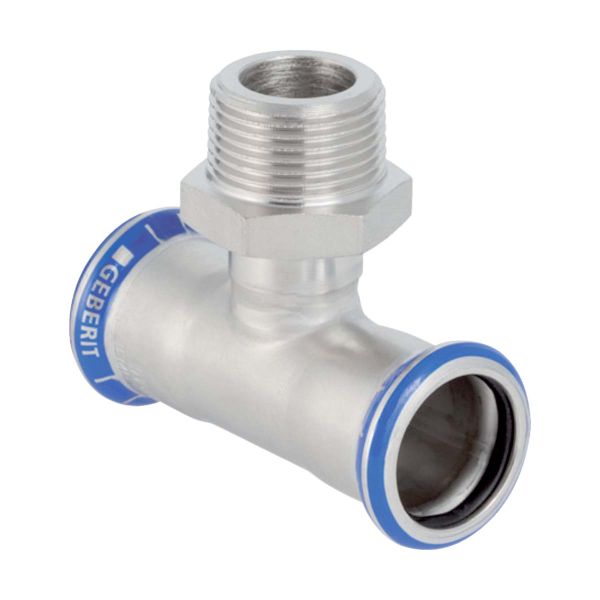

The Geberit Mapress Stainless Steel Male Threaded Tee is designed to connect press-fit systems to threaded components, offering a durable and reliable three-way connection. It allows for secure transitions between press-fit stainless steel pipes and threaded systems, making it ideal for use in drinking water installations, industrial applications, and sprinkler systems. With its high resistance to corrosion and aggressive liquids, the male threaded tee ensures long-lasting performance, even in demanding environments.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
R
d1
arc
L
I
I1
H
Z
487562
31401
12 / 10
15 mm
3/8 ″
15 mm
90 °
6.4 cm
3.2 cm
3.2 cm
5 cm
1.2 cm
487561
31454
12 / 15
15 mm
1/2 ″
15 mm
90 °
6.4 cm
3.2 cm
3.2 cm
4 cm
1.2 cm
487558
31455
15
18 mm
1/2 ″
18 mm
90 °
6.8 cm
3.4 cm
3.4 cm
4.2 cm
1.4 cm
487563
31458
20
22 mm
3/4 ″
22 mm
90 °
7.4 cm
3.7 cm
3.7 cm
4.8 cm
1.6 cm
487559
31461
25
28 mm
1 ″
28 mm
90 °
8.4 cm
4.2 cm
4.2 cm
5.4 cm
1.9 cm
487560
31464
32
35 mm
1 1/4 ″
35 mm
90 °
10 cm
5 cm
5 cm
6 cm
2.4 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
