Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Molybdenum Content: 2.3% minimum
Seal Ring: CIIR (chlorobutyl rubber), black
Design: B1 (raised sealing strip with standard sealing strip), EN 1092-1
Pressure Rating: PN 10/16
Connection Technology: Press-fitting system with colour-coded identification for easy installation and material differentiation.
Description

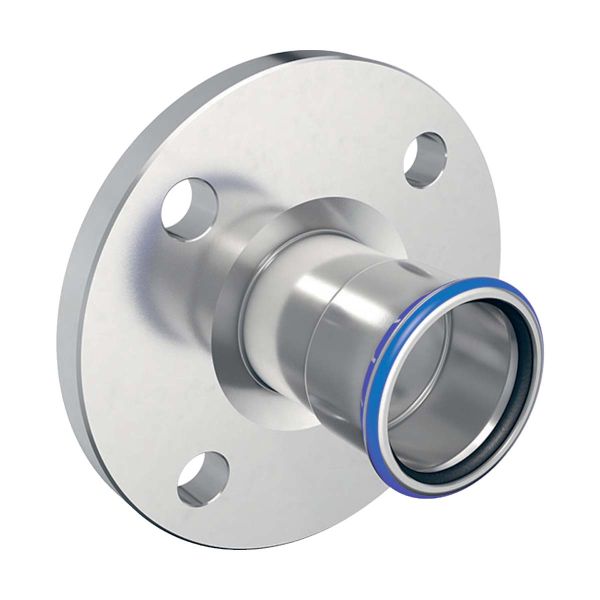

The Geberit Mapress Stainless Steel Flange PN 10/16 is designed to securely connect pipes to pumps, valves, or other equipment in a stainless steel piping system. The flange enables safe and reliable connections, ideal for applications requiring high corrosion resistance, hygiene, and durability. Suitable for use in drinking water installations, industrial piping, and sprinkler systems, this flange ensures a robust solution for high-pressure environments (up to PN 10/16), offering versatile performance in both surface-mounted and concealed installations.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
di
D
k
m
L
I
Z
Holes
PN
487519
33732
15 / 12
15 mm
15 mm
9.5 cm
65 mm
14 mm
6.1 cm
1.6 cm
4.1 cm
4
10 / 16 bar
487520
33733
15
18 mm
15 mm
9.5 cm
65 mm
14 mm
6.2 cm
1.6 cm
4.2 cm
4
10 / 16 bar
487521
33734
20
22 mm
19 mm
10.5 cm
75 mm
14 mm
6.5 cm
1.8 cm
4.4 cm
4
10 / 16 bar
487522
33735
25
28 mm
25 mm
11.5 cm
85 mm
14 mm
6.9 cm
1.8 cm
4.6 cm
4
10 / 16 bar
487523
33736
32
35 mm
32 mm
14 cm
100 mm
18 mm
7.2 cm
1.8 cm
4.6 cm
4
10 / 16 bar
487524
33737
40
42 mm
39 mm
15 cm
110 mm
18 mm
7.9 cm
1.8 cm
4.9 cm
4
10 / 16 bar
487525
33738
50
54 mm
51 mm
16.5 cm
125 mm
18 mm
8.7 cm
1.8 cm
5.2 cm
4
10 / 16 bar
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
