Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088) with CrNi stainless steel nut
Seal Ring: CIIR (Chlorobutyl) black
Flat Gasket: EPDM, suitable for media temperatures between 0°C and 100°C
Molybdenum Content: Minimum 2.3%
Corrosion Resistance: High corrosion resistance due to the elevated molybdenum content, ensuring long-lasting durability in aggressive or corrosive environments
Protection Plug: Delivered with a transparent plug to protect the pressing socket during transport and storage
Description

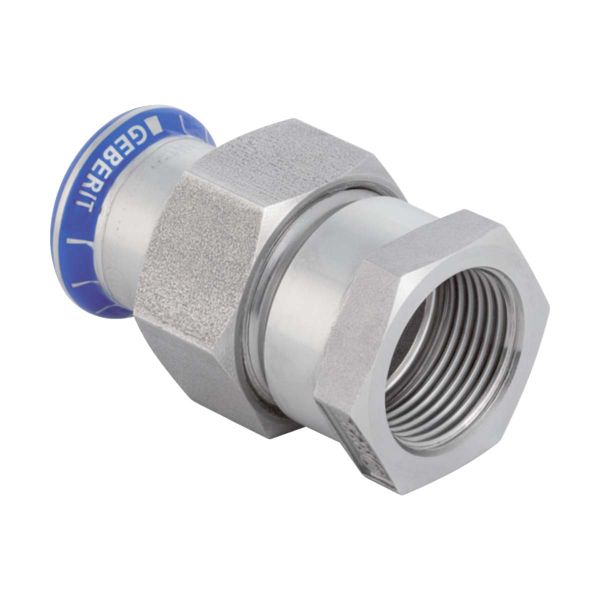

The Geberit Mapress Stainless Steel Female Threaded Union with CrNi Nut is designed for connecting stainless steel press-fit systems to female-threaded components. It is ideal for applications requiring corrosion resistance, durability, and hygiene, such as drinking water installations, industrial systems, and sprinkler systems. The CrNi stainless steel nut provides additional strength and long-lasting reliability, making it suitable for high-pressure and high-temperature environments.
Key Features
Pressing Indicator: Features a visible pressing indicator, ensuring that the connection is securely and correctly pressed, providing a leakproof installation.
Seal Ring: Equipped with a CIIR (Chlorobutyl) black seal ring, offering high durability and reliable sealing, even in high-pressure and high-temperature applications.
Flat Gasket: Includes a flat gasket made of EPDM, suitable for media temperatures between 0°C and 100°C, ensuring a secure, reliable seal for a wide range of fluid systems.
CrNi Nut: The CrNi stainless steel nut provides enhanced corrosion resistance and strength, allowing for reliable disassembly and reassembly during system maintenance.
Leakproof Protection: Delivered with a transparent protection plug to prevent dust and dirt from contaminating the pressing socket during transport and storage, ensuring a clean installation.
High Molybdenum Content: Manufactured from CrNiMo steel 1.4401, with a minimum molybdenum content of 2.3%, offering superior corrosion resistance in aggressive and industrial environments.
Versatile Applications: Suitable for drinking water installations, heating and cooling systems, industrial piping, and sprinkler systems (wet, wet/dry, and dry). Also supports thermal and chemical disinfection, making it ideal for hygiene-sensitive areas.
Fire-Safe Installation: No welding or soldering required, allowing for quicker and safer installation with no risk of fire hazards.
SKU
Article Number
DN
d
Rp
G
L
Z
487499
35350
12 / 15
15 mm
1/2 ″
3/4 ″
5.9 cm
2.6 cm
487501
35351
15
18 mm
1/2 ″
3/4 ″
5.9 cm
2.6 cm
487504
35352
20
22 mm
3/4 ″
1 ″
6.3 cm
2.7 cm
487505
35353
25
28 mm
1 ″
1 1/4 ″
7.1 cm
3.1 cm
487506
35354
32
35 mm
1 1/4 ″
1 1/2 ″
7.7 cm
3.2 cm
487507
35355
40
42 mm
1 1/2 ″
1 3/4 ″
8.2 cm
3.3 cm
487508
35356
50
54 mm
2 ″
2 3/8 ″
9.5 cm
3.7 cm
487500
35357
12 / 20
15 mm
3/4 ″
3/4 ″
6.1 cm
2.6 cm
487502
35358
15 / 20
18 mm
3/4 ″
3/4 ″
6.1 cm
2.6 cm
487503
35359
20 / 25
22 mm
1 ″
1 ″
6.6 cm
2.8 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
