Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Seal Ring: CIIR (Chlorobutyl) black
Molybdenum Content: Minimum 2.3%
Thread Type: Female threaded tee for secure threaded connections
Corrosion Resistance: High resistance to corrosion due to the elevated molybdenum content, ensuring long-term durability in aggressive environments
Protection Plug: Supplied with a transparent plug to protect the pressing socket from contamination during transport and storage
Description

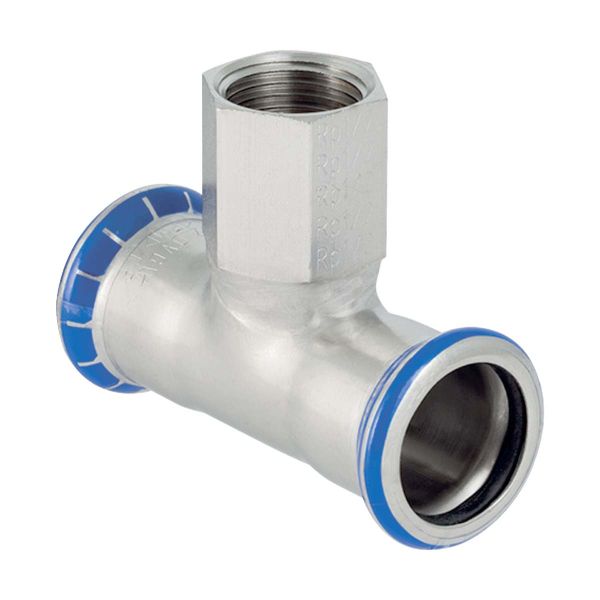

The Geberit Mapress Stainless Steel Female Threaded Tee is designed for reliable three-way connections, facilitating the transition between press-fit stainless steel pipes and female threaded components. This tee is ideal for use in demanding environments such as drinking water installations, industrial systems, and sprinkler applications. With its high corrosion resistance and robust design, it ensures long-lasting performance in systems exposed to high pressures, temperatures, and aggressive liquids.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
Rp
d1
arc
L
L1
I
I2
Z
Z1
Z2
487485
31304
12 / 15
15 mm
1/2 ″
15 mm
90 °
6.4 cm
4 cm
3.2 cm
3.2 cm
1.2 cm
2.7 cm
1.2 cm
487486
31305
15
18 mm
1/2 ″
18 mm
90 °
6.8 cm
4.1 cm
3.4 cm
3.4 cm
1.4 cm
2.9 cm
1.4 cm
487487
31306
15 / 20
18 mm
3/4 ″
18 mm
90 °
6.8 cm
4.4 cm
3.4 cm
3.4 cm
1.4 cm
2.9 cm
1.4 cm
487488
31307
20 / 15
22 mm
1/2 ″
22 mm
90 °
7.4 cm
4.3 cm
3.7 cm
3.7 cm
1.6 cm
3 cm
1.6 cm
487489
31308
20
22 mm
3/4 ″
22 mm
90 °
7.4 cm
4.6 cm
3.7 cm
3.7 cm
1.6 cm
3.1 cm
1.6 cm
487490
31309
25 / 15
28 mm
1/2 ″
28 mm
90 °
8.4 cm
4.6 cm
4.2 cm
4.2 cm
1.9 cm
3.3 cm
1.9 cm
487491
31310
25 / 20
28 mm
3/4 ″
28 mm
90 °
8.4 cm
4.9 cm
4.2 cm
4.2 cm
1.9 cm
3.4 cm
1.9 cm
487484
31311
25
28 mm
1 ″
28 mm
90 °
8.4 cm
5.3 cm
4.2 cm
4.2 cm
1.9 cm
3.6 cm
1.9 cm
487492
31312
32 / 15
35 mm
1/2 ″
35 mm
90 °
10 cm
5 cm
5 cm
5 cm
2.4 cm
3.7 cm
2.4 cm
487493
31313
32 / 20
35 mm
3/4 ″
35 mm
90 °
10 cm
5.3 cm
5 cm
5 cm
2.4 cm
3.8 cm
2.4 cm
487494
31316
40 / 15
42 mm
1/2 ″
42 mm
90 °
11.4 cm
5.3 cm
5.7 cm
5.7 cm
2.7 cm
4 cm
2.7 cm
487495
31317
40 / 20
42 mm
3/4 ″
42 mm
90 °
11.4 cm
5.6 cm
5.7 cm
5.7 cm
2.7 cm
4.1 cm
2.7 cm
487496
31320
50 / 15
54 mm
1/2 ″
54 mm
90 °
13.8 cm
5.9 cm
6.9 cm
6.9 cm
3.4 cm
4.6 cm
3.4 cm
487497
31321
50 / 20
54 mm
3/4 ″
54 mm
90 °
13.8 cm
6.2 cm
6.9 cm
6.9 cm
3.4 cm
4.7 cm
3.4 cm
487498
31324
50
54 mm
2 ″
54 mm
90 °
13.8 cm
7.9 cm
6.9 cm
6.9 cm
3.4 cm
5.6 cm
3.4 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
