Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Seal Ring: CIIR (Chlorobutyl) black
Molybdenum Content: Minimum 2.3%
Connection Type: Female threaded elbow with 90-degree bend
Corrosion Resistance: High corrosion resistance due to elevated molybdenum content, suitable for aggressive environments and high-humidity areas
Protection Plug: Delivered with a transparent plug to protect the pressing socket during transport and storage
Description

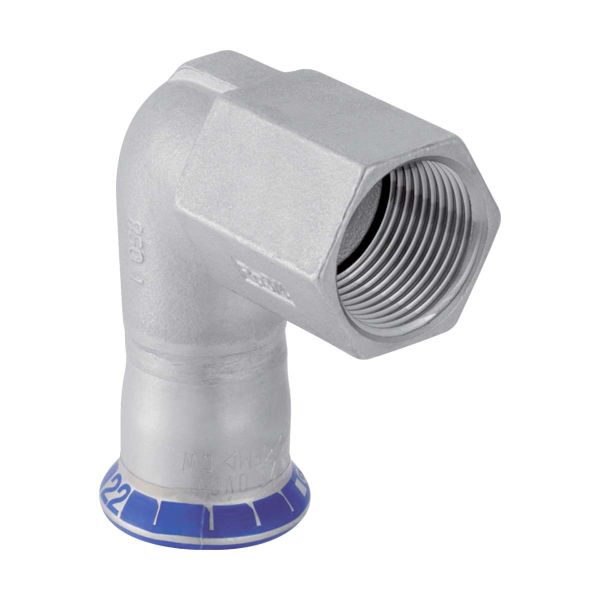

The Geberit Mapress Stainless Steel Female Threaded Elbow 90° is designed to connect press-fit stainless steel systems to female-threaded components, enabling a 90-degree change in direction. It provides a secure, corrosion-resistant, and durable solution for drinking water systems, industrial piping, and high-pressure applications. Its excellent corrosion resistance and reliable sealing make it ideal for environments with aggressive fluids and demanding hygiene requirements.
Key Features
Pressing Indicator: Equipped with a visible pressing indicator that confirms a proper press-fit connection, ensuring a secure, leakproof installation.
Seal Ring: Features a CIIR (Chlorobutyl) black seal ring, designed for high-pressure and high-temperature applications, providing long-lasting and reliable sealing.
Leakproof Protection: Supplied with a transparent protection plug to prevent dust and dirt from entering the pressing socket during transportation and storage, ensuring a clean and efficient installation.
High Molybdenum Content: Made from CrNiMo steel 1.4401 with a minimum molybdenum content of 2.3%, offering superior resistance to corrosion, especially in harsh environments like industrial systems.
Female Threaded Connection: The female threaded outlet provides easy integration with threaded components, allowing flexible and secure connections in various systems.
Versatile Applications: Suitable for use in potable water systems, industrial piping, sprinkler systems (wet, wet/dry, and dry), and chemical disinfection applications. Ideal for installations with demanding hygiene requirements.
Comprehensive System Compatibility: Fully compatible with the Geberit Mapress Stainless Steel system, ensuring compatibility with a wide range of fittings and adaptors, providing flexibility for diverse installations.
Fire-Safe Installation: No welding or soldering required, allowing for quicker and safer installation with no fire hazards.
SKU
Article Number
DN
d
Rp
arc
L
L1
Z
Z1
487478
33803
12 / 15
15 mm
1/2 ″
90 °
5.7 cm
3.7 cm
3.7 cm
2.4 cm
487479
33804
15
18 mm
1/2 ″
90 °
5.7 cm
3.9 cm
3.7 cm
2.6 cm
487480
33805
20
22 mm
3/4 ″
90 °
6 cm
4.6 cm
3.9 cm
3.1 cm
487481
33806
25
28 mm
1 ″
90 °
6.7 cm
5.4 cm
4.3 cm
3.7 cm
487482
33807
32
35 mm
1 1/4 ″
90 °
7.5 cm
6.3 cm
4.9 cm
4.4 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
