Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Seal Ring: CIIR (Chlorobutyl) black
Molybdenum Content: Minimum 2.3%
Applications: Drinking water installations, industrial systems, and sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High corrosion resistance due to the elevated molybdenum content, ideal for aggressive environments
Protection Plug: Delivered with a transparent protection plug to prevent contamination during transport and storage
Description

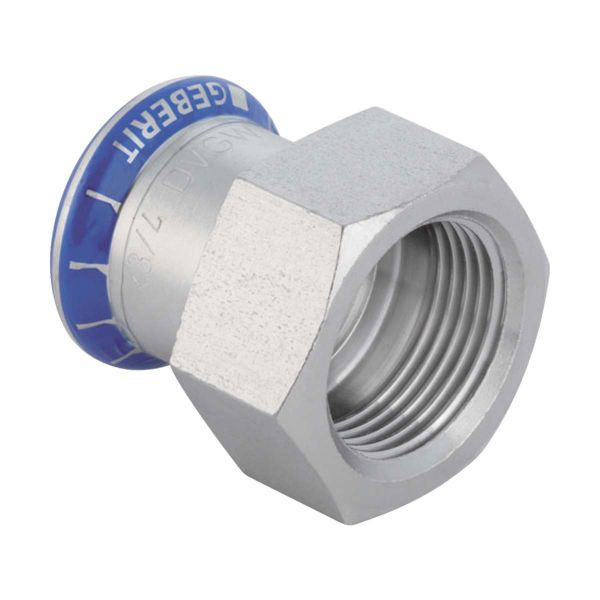

The Geberit Mapress Stainless Steel Female Adaptor is designed to connect press-fit systems to threaded components, offering a secure and reliable transition. This adaptor is perfect for use in demanding environments such as drinking water installations, industrial systems, and sprinkler systems. With its superior corrosion resistance and hygienic design, this female adaptor is engineered for long-term performance in high-pressure and high-temperature applications, as well as systems exposed to aggressive liquids.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
Rp
L
Z
487461
31801
12 / 10
15 mm
3/8 ″
3.5 cm
0.5 cm
487462
31802
12 / 15
15 mm
1/2 ″
3.7 cm
0.4 cm
487463
31803
15
18 mm
1/2 ″
3.7 cm
0.4 cm
487464
31804
15 / 20
18 mm
3/4 ″
3.8 cm
0.3 cm
487465
31805
20 / 15
22 mm
1/2 ″
3.6 cm
0.2 cm
487466
31806
20
22 mm
3/4 ″
3.9 cm
0.3 cm
487469
31809
25
28 mm
1 ″
4.4 cm
0.4 cm
487472
31811
32
35 mm
1 1/4 ″
4.9 cm
0.4 cm
487475
31814
40
42 mm
1 1/2 ″
5.3 cm
0.4 cm
487477
31818
50
54 mm
2 ″
6.2 cm
0.4 cm
487468
31819
25 / 20
28 mm
3/4 ″
3.9 cm
0.3 cm
487471
31820
32 / 25
35 mm
1 ″
4.5 cm
0.2 cm
487474
31821
40 / 32
42 mm
1 1/4 ″
5.1 cm
0.2 cm
487476
31822
50 / 40
54 mm
1 1/2 ″
7.7 cm
2.1 cm
487467
31824
20 / 25
22 mm
1 ″
4.2 cm
0.4 cm
487470
31825
25 / 32
28 mm
1 1/4 ″
4.6 cm
0.4 cm
487473
31826
32 / 40
35 mm
1 1/2 ″
4.9 cm
0.4 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
