Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Seal Ring: CIIR (Chlorobutyl) black
Molybdenum Content: Minimum 2.3%
Corrosion Resistance: High resistance to corrosion due to elevated molybdenum content, ensuring long-term durability in challenging environments
Protection Plug: Supplied with a transparent plug to protect pressing sockets from contamination during transport and storage
Description

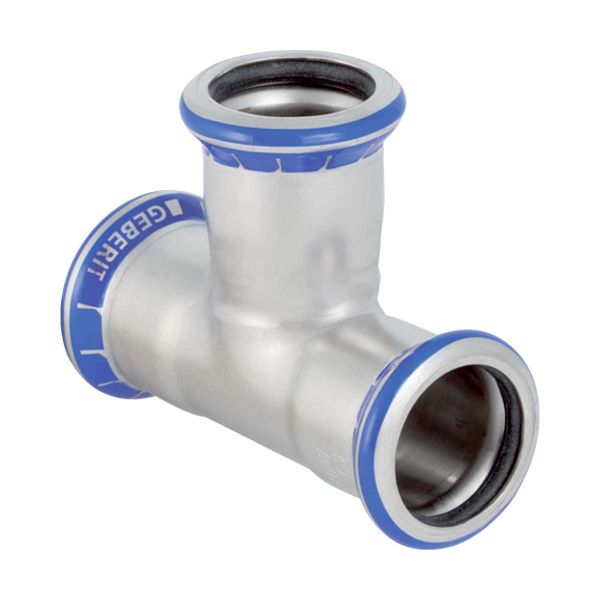

The Geberit Mapress Stainless Steel Equal T-Piece is designed to connect three pipes of equal diameter, providing a reliable and durable connection in press-fit systems. It is ideal for use in demanding applications such as drinking water installations, industrial systems, and sprinkler systems. With its high corrosion resistance and hygienic properties, this T-piece ensures optimal performance in systems exposed to high temperatures, pressures, and aggressive liquids.
Key Features
Pressing Indicator: Equipped with a visible pressing indicator, which ensures the connection is correctly pressed, preventing leaks and maintaining system safety.
Seal Ring: Utilises a CIIR (Chlorobutyl) black seal ring for a leakproof and durable connection, capable of handling high pressures and temperatures.
Leakproof Protection: Delivered with a transparent protection plug to safeguard the pressing sockets from dust and dirt during transport and storage, ensuring a clean and secure installation.
High Molybdenum Content: Constructed from CrNiMo steel 1.4401, with a minimum molybdenum content of 2.3%, providing superior corrosion resistance, especially in aggressive environments like chemical and industrial settings.
Versatile Applications: Suitable for drinking water installations, industrial systems, and approved for use in sprinkler systems (wet, wet/dry, and dry). The T-piece meets the strict hygiene requirements for potable water systems and is capable of withstanding thermal and chemical disinfection.
Comprehensive System Compatibility: Designed to work seamlessly with the Geberit Mapress Stainless Steel system, offering compatibility with a wide range of fittings and adaptors for various applications.
Fire-Safe Installation: As no welding or soldering is required, the installation process is safer and quicker, reducing labour costs and eliminating fire hazards.
SKU
Article Number
DN
d
arc
L
L1
I
Z
Z1
487454
31002
12
15 mm
90 °
6.4 cm
3.9 cm
3.2 cm
1.2 cm
1.9 cm
487455
31003
15
18 mm
90 °
6.8 cm
4.1 cm
3.4 cm
1.4 cm
2.1 cm
487456
31004
20
22 mm
90 °
7.4 cm
4.4 cm
3.7 cm
1.6 cm
2.3 cm
487457
31005
25
28 mm
90 °
8.4 cm
5 cm
4.2 cm
1.9 cm
2.7 cm
487458
31006
32
35 mm
90 °
10 cm
5.7 cm
5 cm
2.4 cm
3.1 cm
487459
31007
40
42 mm
90 °
11.4 cm
6.5 cm
5.7 cm
2.7 cm
3.5 cm
487460
31008
50
54 mm
90 °
13.8 cm
7.7 cm
6.9 cm
3.4 cm
4.2 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
