Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088)
Molybdenum Content: Minimum 2.3%
Bend Angle: 60°
Applications: Drinking water installations, industrial systems, sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High resistance due to elevated molybdenum content, ideal for aggressive environments
Indicator Ring: Blue, for easy identification of product material
Description

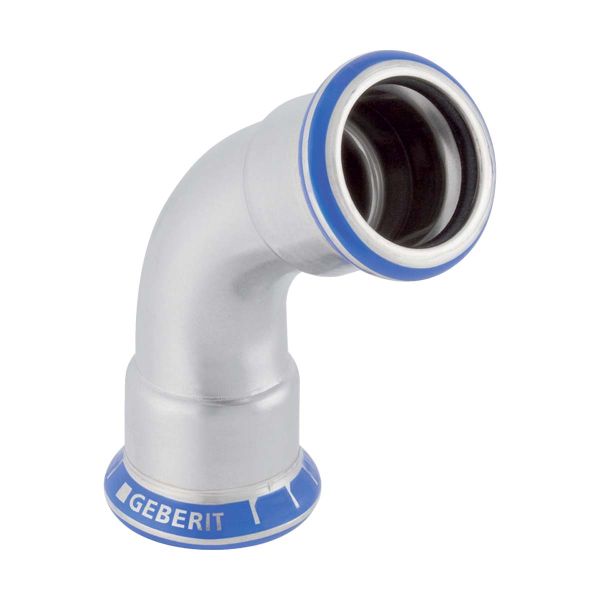

The Geberit Mapress Stainless Steel Elbow 60° is designed to provide a precise 60° directional change in pipe systems, ensuring efficient flow while maintaining system integrity. This fitting is ideal for use in environments requiring high corrosion resistance and hygienic standards, such as drinking water installations, industrial systems, and sprinkler systems. It is engineered to withstand high temperatures, pressures, and exposure to aggressive liquids, making it a versatile and reliable choice.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
arc
L
Z
487434
36161
12
15 mm
60 °
4 cm
2 cm
487435
36163
20
22 mm
60 °
4.7 cm
2.6 cm
487436
36164
25
28 mm
60 °
5.4 cm
3.1 cm
487437
36165
32
35 mm
60 °
5 cm
2.4 cm
487438
36166
40
42 mm
60 °
5.9 cm
2.9 cm
487439
36167
50
54 mm
60 °
7.2 cm
3.7 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
