Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Molybdenum Content: Minimum 2.3% for enhanced corrosion resistance
Bend Angle: 60 degrees
System Compatibility: Identified by the blue indicator ring, compatible with the Geberit Mapress Stainless Steel system
Description

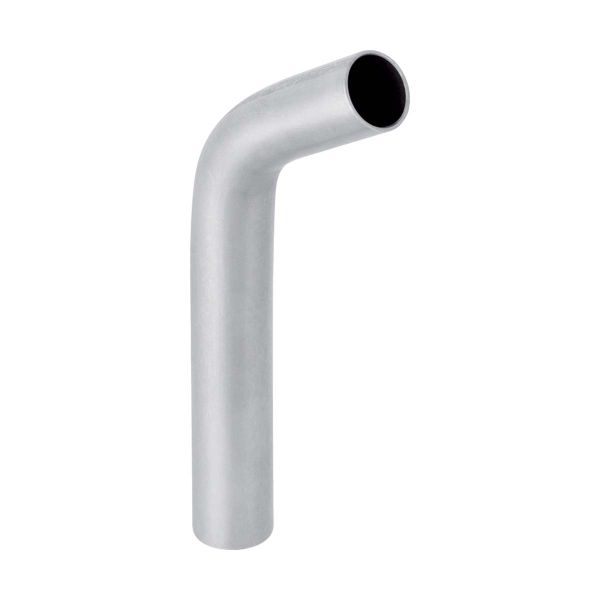

The Geberit Mapress Stainless Steel Bend 60 is designed to provide a smooth 60-degree directional change in stainless steel piping systems. This bend is perfect for installations where hygiene, corrosion resistance, and durability are essential. It is widely used in drinking water installations, industrial applications, and environments handling aggressive liquids, high temperatures, and pressures. Additionally, it is approved for use in fire protection systems such as sprinkler installations, making it a versatile component for various demanding applications.
Key Features
High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
SKU
Article Number
DN
d
arc
H
H1
K
K1 max.
487382
30069
65
76.1 mm
60 °
12.6 cm
24.6 cm
0 cm
12 cm
487383
30070
80
88.9 mm
60 °
14.6 cm
27.1 cm
0 cm
12.5 cm
487384
30071
100
108 mm
60 °
18 cm
31.7 cm
0 cm
13.7 cm
487375
30942
12
15 mm
60 °
5 cm
12 cm
0 cm
7 cm
487376
30943
15
18 mm
60 °
5.3 cm
12.4 cm
0 cm
7.1 cm
487377
30944
20
22 mm
60 °
5.6 cm
12.8 cm
0 cm
7.2 cm
487378
30955
25
28 mm
60 °
6.1 cm
13.7 cm
0 cm
7.6 cm
487379
30956
32
35 mm
60 °
5.9 cm
13.6 cm
0 cm
7.7 cm
487380
30957
40
42 mm
60 °
6.9 cm
15.9 cm
0 cm
9 cm
487381
30958
50
54 mm
60 °
8.3 cm
17.7 cm
0 cm
9.4 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
