Applications: Drinking water installations, industrial systems, sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High resistance due to the elevated molybdenum content
Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Description

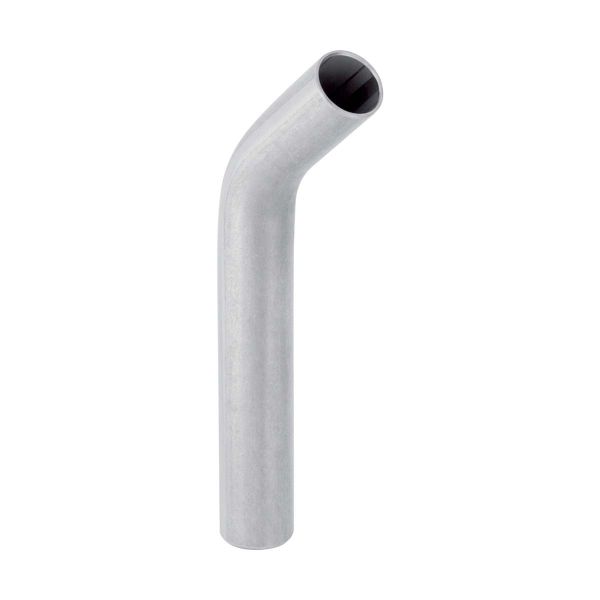

The Geberit Mapress Stainless Steel 45° Bend is designed to change the direction of pipe runs in a reliable and efficient manner. It is ideal for use in systems that require superior corrosion resistance and hygiene, such as drinking water installations, industrial applications, and areas with stringent hygiene demands. This fitting ensures optimal flow control while maintaining the integrity of the system, especially in high-pressure and high-temperature environments.
Key Features
High Molybdenum Content: Made from CrNiMo steel 1.4401 with a minimum molybdenum content of 2.3%, providing superior corrosion resistance.
Versatile Applications: Suitable for a wide range of applications, including drinking water systems, industrial buildings, and sprinkler systems.
Hygienic Design: Ideal for areas sensitive to hygiene, with compatibility for thermal and chemical disinfection.
Leakproof Protection: Fitted with leakproof plugs during transport to protect the fitting from dust and dirt until installation.
System Compatibility: Works seamlessly with the Geberit Mapress system, offering a comprehensive range of adaptors and transitions to other Geberit piping systems.
Reliable Connections: The blue indicator ring allows for easy identification and ensures a safe, reliable connection.
SKU
Article Number
DN
d
arc
H
H1
K
K1 max.
487372
30049
65
76.1 mm
45 °
11.1 cm
23 cm
0 cm
11.9 cm
487373
30050
80
88.9 mm
45 °
13 cm
25.2 cm
0 cm
12.2 cm
487374
30051
100
108 mm
45 °
15.7 cm
29.4 cm
0 cm
13.7 cm
487365
30872
12
15 mm
45 °
4.5 cm
11.6 cm
0 cm
7.1 cm
487366
30873
15
18 mm
45 °
4.2 cm
11.7 cm
0 cm
7.5 cm
487367
30874
20
22 mm
45 °
5.2 cm
12.3 cm
0 cm
7.1 cm
487368
30875
25
28 mm
45 °
5.6 cm
13.1 cm
0 cm
7.5 cm
487369
30876
32
35 mm
45 °
5.3 cm
12.9 cm
0 cm
7.6 cm
487370
30877
40
42 mm
45 °
6.1 cm
15.1 cm
0 cm
9 cm
487371
30878
50
54 mm
45 °
7.3 cm
16.7 cm
0 cm
9.4 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
