Design: Lockable with pressing indicator and protective transparent plug
Applications: Drinking water installations, industrial piping, high-pressure and high-temperature systems, environmentally sensitive installations
ISO 5211 Actuator Mount (for d = 76.1–108 mm): Comes with a connecting flange for motorised control as per EN ISO 5211 standards, allowing for automation and remote control, ideal for large-scale or automated systems.
Adjustable Actuator Lever (for d = 108 mm): The length-adjustable actuator lever provides flexibility in handling and operation, enabling more precise control over flow and easy integration into a variety of setups.
Description

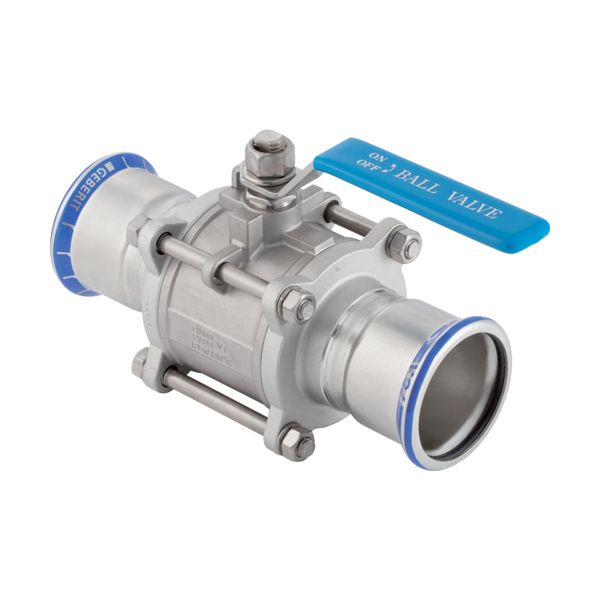

The Geberit Mapress Stainless Steel 3 Piece Ball Valve is designed for precise flow control and shut-off in demanding piping systems. It is ideal for applications requiring high hygiene, corrosion resistance, and reliable functionality, such as drinking water installations, industrial piping, and high-temperature or high-pressure systems. This ball valve offers excellent versatility, durability, and ease of use, making it suitable for both commercial and industrial applications.
Key Features
High Molybdenum Content: Made from CrNiMo steel 1.4401 (EN 10088) with a minimum molybdenum content of 2.3%, this ball valve provides superior corrosion resistance, making it suitable for aggressive environments and diverse applications.
Precision and Durability with PTFE Components: Features a spindle caulk and section seal made of PTFE, providing reliable sealing, smooth operation, and long-lasting resistance to wear and chemicals.
Lockable for Safety: Features a lockable design for enhanced safety and security, helping prevent accidental operation or tampering.
Pressing Indicator: Equipped with a pressing indicator, this valve provides a visual signal if left unpressed, allowing installers to identify incomplete connections easily.
Leakproof Seal Ring: Includes a black CIIR (chlorobutyl rubber) seal ring for a secure, leakproof connection, ensuring reliable and efficient operation.
Protective Transparent Plug: The pressing socket is supplied with a transparent protection plug to prevent dust and debris from contaminating the valve during transport and installation.
Wide Operating Temperature Range: Operates effectively across a temperature range of -20 to +120 °C, making it adaptable to diverse environments and temperature-sensitive applications.
SKU
Article Number
DN
DNV
d (mm)
k (mm)
m (mm)
L (cm)
L1 (cm)
L2 (cm)
Z (cm)
PN (bar)
487325
92100
12
15
15
/
/
12.2
5
9.3
4.1
40
487326
92102
20
20
22
/
/
13.3
5.6
10.3
4.5
40
487327
92103
25
25
28
/
/
14.2
6.6
12.8
4.8
16
487328
92104
32
32
35
/
/
17
7.5
12.8
5.9
16
487329
92105
40
40
42
/
/
19.4
8.5
15.8
6.7
16
487330
92106
50
50
54
/
/
22.1
9.6
15.8
7.5
16
487331
92107
65
65
76.1
70
9
29.1
13.5
22.3
9.2
16
487332
92108
80
80
88.9
70
9
33.3
14.5
35.8
10.6
16
487333
92109
100
100
108
102
11
41.2
17.7
50
13.1
16
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
