Material (Pipe): PE-RT II / Aluminium / PE-RT II multi-layer construction
Surface Roughness: 7 µm
Thermal Expansion: 0.026 mm/(m·K)
Thermal Conductivity (Pipe): 0.41 W/(m·K)
Insulation Material: PE soft foam
Thermal Conductivity (Insulation): 0.04 W/(m·K)
Water Vapour Diffusion Resistance (Outer Skin): 7000 µ
Colour (Media Pipe): Silver grey (RAL 7001)
Insulation Cover Colour: Blue protective foil
Description

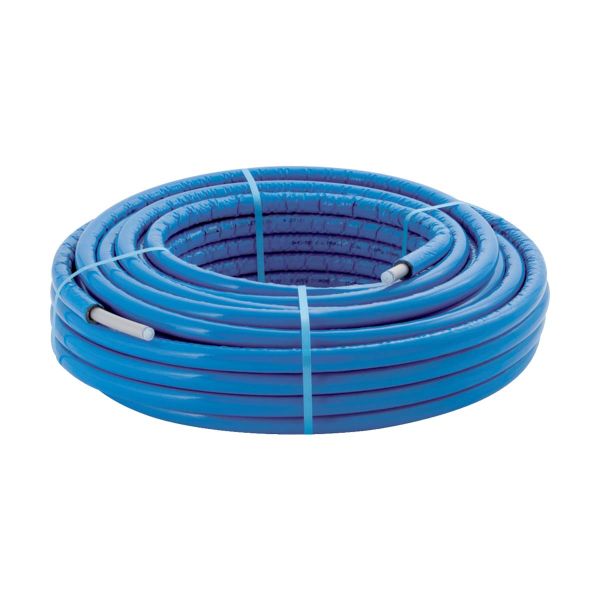

Geberit FlowFit Pre-Insulated System Pipe Blue Coils are designed for heating, cooling, and potable water systems where enhanced thermal efficiency is required. These pipes come pre-insulated with closed-cell foam and a blue protective foil, providing excellent energy-saving performance and helping to prevent condensation. The flexible, hand-bendable design simplifies installation, while the multi-layer construction with a built-in diffusion barrier ensures long-lasting reliability. The silver-grey media pipe with the RAL 7001 finish offers a professional appearance and durability.
Key Features
Inherently Stable: Provides excellent stability during installation while remaining flexible enough to be bent by hand, making the installation process easier and more efficient.
Diffusion Barrier: The media pipe includes an aluminium layer that forms an effective diffusion barrier, preventing gas permeation and ensuring long-term system integrity.
Pre-Insulated Design: Features closed-cell PE soft foam insulation with a blue protective foil, reducing thermal losses and preventing condensation. The insulation is HCFC-free and HFC-free, contributing to an environmentally friendly solution.
Fire Behaviour Class E: Certified as class E for fire behaviour according to EN 13501-1, ensuring compliance with safety regulations.
Water Vapour Resistance: The outer skin of the insulation has a high water vapour diffusion resistance of 7000 µ, further enhancing its thermal performance and durability.
Protection Plug: Pipe ends are equipped with transparent protection plugs, ensuring cleanliness and preventing damage during transportation and storage.
Multi-Layer Construction: Made from PE-RT II/Al/PE-RT II, providing durability and strength for both indoor and outdoor installations.
SKU
Art. no.
DN
d, ø (mm)
Insulation (mm)
di, ø (mm)
D (cm)
s1 (mm)
s (mm)
L (m)
486406
619.100.00.2
12
16
6
12
2.8
6
2
50
486409
619.101.00.2
15
20
6
16
3.2
6
2
50
486400
619.102.00.2
20
25
6
20
3.7
6
2.5
25
486403
619.103.00.2
25
32
6
26.4
4.4
6
2.8
25
486407
619.120.00.2
12
16
10
12
3.6
10
2
50
486410
619.121.00.2
15
20
10
16
4
10
2
50
486401
619.122.00.2
20
25
10
20
4.5
10
2.5
25
486404
619.123.00.2
25
32
10
26.4
5.2
10
2.8
25
486408
619.140.00.2
12
16
13
12
4.2
13
2
50
486411
619.141.00.2
15
20
13
16
4.6
13
2
50
486402
619.142.00.2
20
25
13
20
5.1
13
2.5
25
486405
619.143.00.2
25
32
13
26.4
5.8
13
2.8
25
486399
619.160.00.2
12
16
26
12
6.8
26
2
25
486398
619.161.00.2
15
20
26
16
7.2
26
2
20
486397
619.162.00.2
20
25
26
20
7.7
26
2.5
15
