Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Ring: CIIR black (up to 54 mm), EPDM black (over 54 mm)
Connection Technology: Press-fit with pressing indicator
Leak Detection: Leaky if unpressed (up to 54 mm)
Applications: Potable water installations, heating and cooling circuits
Installation: Suitable for both surface-mounted and concealed systems
Description

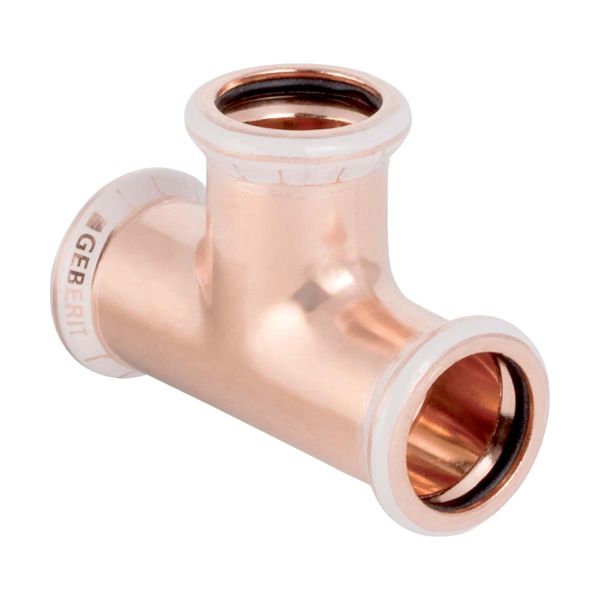

The Geberit Mapress Copper Equal Tee is designed to create a secure and reliable connection between three copper pipes of equal diameter. This fitting allows for branching in copper pipe systems, making it ideal for potable water installations, as well as heating and cooling circuits. Using press-fit technology, the equal tee ensures quick and efficient installation, eliminating the need for hot works like welding or soldering.
Key Features
High-Quality Copper Material: Made from durable Cu-DHP copper CW024A (EN 1412), this tee fitting is highly resistant to corrosion and suitable for use in potable water systems and heating or cooling circuits.
Leak Detection: For pipe diameters up to 54 mm, the tee fitting is designed to be leaky if unpressed, making it easy to detect any missed connections during installation.
Reliable Sealing: The Geberit Mapress Copper Equal Tee is equipped with CIIR black seal rings for diameters up to 54 mm and EPDM black seal rings for larger diameters, ensuring a secure, leak-proof connection.
No Hot Works Needed: The press-fit technology eliminates the need for soldering or welding, minimising the risk of fire and allowing for faster, more economical installations, particularly in renovations or residential areas.
Clean and Hygienic: The seal rings are protected from dirt during the installation process, ensuring that the system remains clean and hygienic, particularly important in potable water systems.
Colour Indicators: The fitting comes with pressing indicators and transparent protection plugs, helping installers easily identify material types and avoid confusion with third-party products.
Versatile Application: Suitable for both surface-mounted and concealed installations, the tee can be used in a wide variety of plumbing and heating systems in both residential and industrial environments.
SKU
Art. no.
DN
d, ø (mm)
arc (degrees)
L (cm)
L1 (cm)
l (cm)
Z (cm)
Z1 (cm)
486737
61002
12
15
90
6.4
3.1
3.2
1.2
1.2
486738
61003
15
18
90
6.8
3.4
3.4
1.4
1.4
486739
61004
20
22
90
7.4
3.7
3.7
1.6
1.6
486740
61005
25
28
90
8.4
4.2
4.2
1.9
1.9
486741
61006
32
35
90
10
5.9
5
2.4
3.3
486742
61007
40
42
90
11.4
6.6
5.7
2.7
3.6
486743
61008
50
54
90
13.8
7.8
6.9
3.4
4.3
486744
61010
65
66.7
90
22
10.5
11
6
5.5
486745
61011
65
76.1
90
23
11
11.5
6.2
5.7
486746
61012
80
88.9
90
26
12.7
13
7
6.7
486747
61013
100
108
90
31
15.3
15.5
8
7.8
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
