Exterior Finish: Zinc-plated for corrosion resistance
Leak Proofing: Leaky when unpressed for installation safety
Description

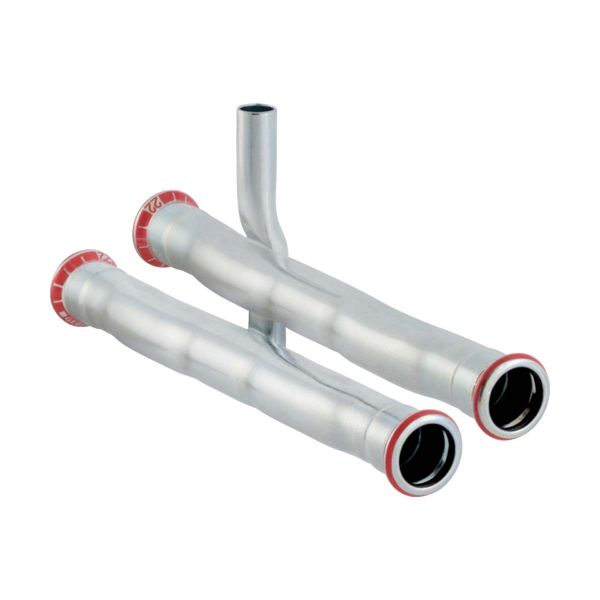

The Geberit Mapress Carbon Steel T-Piece for Return Flow is designed for use in heating and cooling systems to manage the return flow of water, ensuring efficient system performance. This fitting is particularly suitable for skirting board heating systems and can be used with water that contains or does not contain antifreeze agents. Its robust, zinc-plated construction ensures corrosion resistance, making it ideal for long-term use in both residential and industrial systems.
Key Features
Pressing Indicator: Equipped with a pressing indicator that provides visual confirmation when the fitting has been securely pressed, ensuring a leak-proof and reliable connection.
Leak Detection: The fitting will leak if unpressed, alerting installers to unpressed connections before system pressurisation, offering an additional layer of safety.
Zinc-Plated Exterior: The non-alloy steel body is zinc-plated, providing excellent corrosion resistance, making it suitable for use in demanding environments, including both indoor and outdoor installations.
CIIR Seal Ring: Fitted with a black CIIR (chlorinated isobutylene-isoprene rubber) seal ring that ensures a tight, long-lasting seal, preventing leaks and ensuring system integrity under high pressure.
Pressing Socket with Protection Plug: The pressing socket is protected by a transparent plug during transport and storage to prevent contamination or damage, ensuring the fitting is clean and ready for installation.

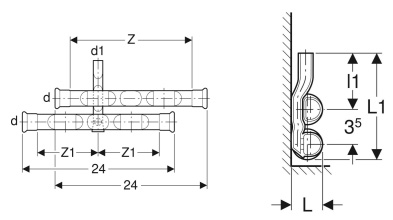

SKU
Art. no.
DN
d, ø (mm)
d1, ø (mm)
arc (degrees)
L (cm)
L1 (cm)
l1 (cm)
Z (cm)
Z1 (cm)
487307
23602
12
15
15
90
2.7
10.8
6.5
10
20
487308
23603
15 / 12
18
15
90
2.9
11
6.5
10
20
487309
23604
20 / 12
22
15
90
3.3
11.2
6.5
9.9
19.8
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
