Exterior Finish: Zinc-plated for corrosion resistance
Leak Proofing: Leaky when unpressed for installation safety
Design: Reducing branch for connection of pipes with different diameters
Description

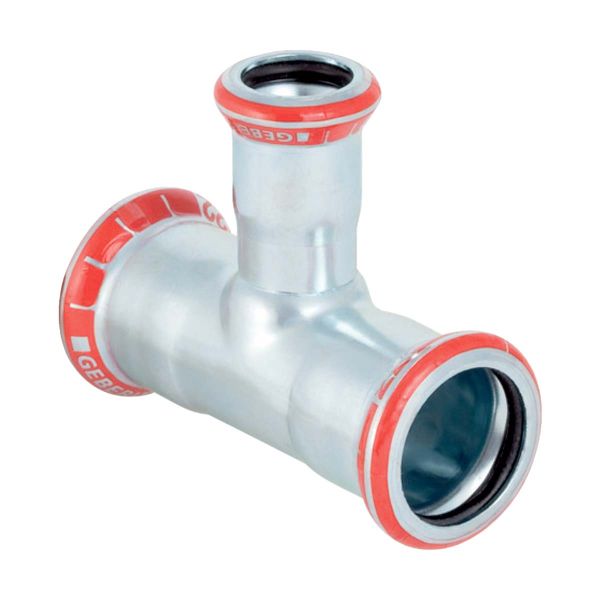

The Geberit Mapress Carbon Steel Reducing Tee is designed to connect three sections of pipe while enabling a reduction in pipe diameter on one branch. This fitting is ideal for creating branch connections in high-pressure systems such as heating, cooling, and industrial installations. Its durable zinc-plated construction ensures corrosion resistance, making it reliable for long-term use in a wide range of environments.
Key Features
Pressing Indicator: Provides a clear visual indication when the fitting has been properly pressed, ensuring a secure and leak-proof connection during installation.
Leak Detection: Leaks if unpressed, allowing installers to identify any unpressed fittings before the system is pressurised, offering an added safety feature.
Zinc-Plated Exterior: The non-alloy steel body is zinc-plated for enhanced corrosion resistance, making it suitable for both indoor and outdoor use in demanding environments.
CIIR Seal Ring: The black CIIR (chlorinated isobutylene-isoprene rubber) seal ring ensures a long-lasting, reliable seal that prevents leaks, even under high-pressure conditions.
Pressing Socket with Protection Plug: Comes with a transparent protection plug to safeguard the socket from contamination and damage during transport and storage.
Reducing Branch Design: Enables connection of pipes with different diameters, allowing for efficient system configuration and flow distribution.
SKU
Art. no.
DN
d, ø (mm)
d1, ø (mm)
d2, ø (mm)
arc (degrees)
L (cm)
L1 (cm)
l (cm)
l2 (cm)
Z (cm)
Z1 (cm)
Z2 (cm)
487247
21101
10 / 12
12
15
12
90
5.6
3.5
2.8
2.8
1.1
1.5
1.1
487250
21103
12 / 15
15
18
15
90
6.4
3.6
3.2
3.2
1.2
1.6
1.2
487251
21104
12 / 20
15
22
15
90
6.4
4.2
3.2
3.2
1.2
2.1
1.2
487254
21105
15 / 20
18
22
18
90
6.8
4.1
3.4
3.4
1.4
2
1.4
487257
21107
20 / 25
22
28
22
90
7.4
4.5
3.7
3.7
1.6
2.2
1.6
487248
21202
12 / 10
15
12
15
90
6.4
3.6
3.2
3.2
1.2
1.9
1.2
487252
21203
15 / 10
18
12
18
90
6.8
3.8
3.4
3.4
1.4
2.1
1.4
487253
21204
15 / 12
18
15
18
90
6.8
4.2
3.4
3.4
1.4
2.2
1.4
487249
21205
20 / 10
22
12
22
90
7.4
4
3.7
3.7
1.6
2.3
1.6
487255
21206
20 / 12
22
15
22
90
7.4
4.4
3.7
3.7
1.6
2.4
1.6
487256
21207
20 / 15
22
18
22
90
7.4
4.4
3.7
3.7
1.6
2.4
1.6
487258
21209
25 / 12
28
15
28
90
8.4
4.7
4.2
4.2
1.9
2.7
1.9
487259
21210
25 / 15
28
18
28
90
8.4
4.7
4.2
4.2
1.9
2.7
1.9
487260
21211
25 / 20
28
22
28
90
8.4
4.8
4.2
4.2
1.9
2.7
1.9
487261
21212
32 / 12
35
15
35
90
10
5.1
5
5
2.4
3.1
2.4
487262
21213
32 / 15
35
18
35
90
10
5.1
5
5
2.4
3.1
2.4
487263
21214
32 / 20
35
22
35
90
10
5.2
5
5
2.4
3.1
2.4
487264
21215
32 / 25
35
28
35
90
10
5.5
5
5
2.4
3.2
2.4
487265
21216
40 / 12
42
15
42
90
11.4
5.3
5.7
5.7
2.7
3.3
2.7
487266
21217
40 / 15
42
18
42
90
11.4
5.3
5.7
5.7
2.7
3.3
2.7
487267
21218
40 / 20
42
22
42
90
11.4
5.5
5.7
5.7
2.7
3.4
2.7
487268
21219
40 / 25
42
28
42
90
11.4
5.8
5.7
5.7
2.7
3.5
2.7
487269
21220
40 / 32
42
35
42
90
11.4
6.1
5.7
5.7
2.7
3.5
2.7
487270
21221
50 / 12
54
15
54
90
13.8
5.9
6.9
6.9
3.4
3.9
3.4
487271
21222
50 / 15
54
18
54
90
13.8
5.9
6.9
6.9
3.4
3.9
3.4
487272
21223
50 / 20
54
22
54
90
13.8
6.1
6.9
6.9
3.4
4
3.4
487273
21224
50 / 25
54
28
54
90
13.8
6.4
6.9
6.9
3.4
4.1
3.4
487274
21225
50 / 32
54
35
54
90
13.8
6.8
6.9
6.9
3.4
4.2
3.4
487275
21226
50 / 40
54
42
54
90
13.8
7.2
6.9
6.9
3.4
4.2
3.4
