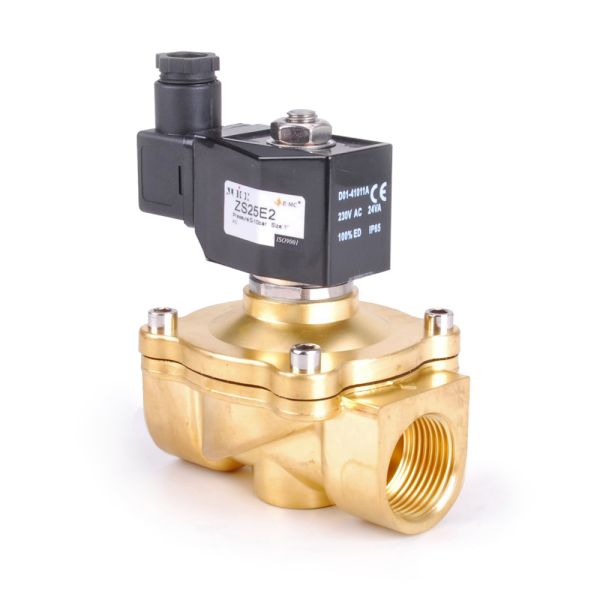

Servo Activated Normally Closed NBR

Key Features / Tech Specs / Dimensions:

• Material: Brass and Stainless Steel
• Sizes Up to 2"
• 2/2 Way Valve Configuration
• NBR Diaphragm
• Normally Closed valves available
• Temperature Range 0°C - 80°C
• Pressure Range 0 - 10 bar AC, 0 - 6 bar DC (Oils May Vary)

	Number	Part Name	Material
	1	Lock Nut	Stainless Steel 302
	2	Washer	Stainless Steel 302
	3	Plate	Aluminium
	4	O Ring	NBR
	5	Coil	Enamelled Wire
	6	Baseplate	Plated Steel
	7	Plunger Tube Unit	Stainless Steel 304 +1J117
	8	Plunger Tube Seal	PTFE
	9	Bolt	Stainless Steel 302
	10	Valve Cover	Brass
	11	Plunger Spring	Stainless Steel 304
	12	Pilot Unit	Stainless Steel 304 + 1J117
	13	Coil Spring	Stainless Steel 304
	14	Diaphragm Unit	NBR
	15	Valve Body	Brass
	16	Plug	Nylon



	Port Size D (Inch)	A (mm)	B (mm)	H (mm)
	1/4	50	40.5	98
	3/8	50	40.5	98
	1/2	50	40.5	98
	3/4	73	57	114
	1	99	77	121
	1 1/4	112	86.5	150
	1 1/2	123	94	160
	2	168	123	183



Useful Info:

A Solenoid Valve is an mechanical valve that requires an electric current to operate. The electric current passes through a solenoid generating a magnetic field, which in turn raises or lowers a plunger and diaphragm inside the valve.

Normally Closed valves are closed until activated by the solenoid.
