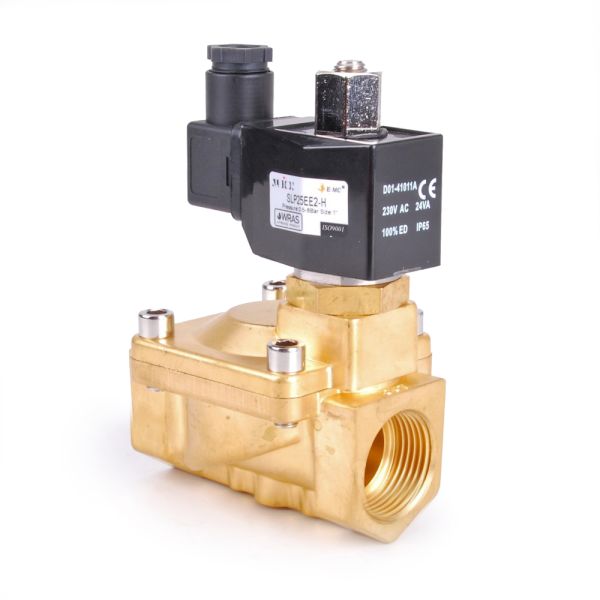

Pilot Operated Normally Open EPDM
Key Features / Tech Specs / Dimensions:
- Material: Brass
- 2/2 Way Valve Configuration
- Sizes Up to 2"
- Normally Closed valves
- EPDM Diaphragm
- Temperature Range 0°C - 120°C
- Pressure Range 0.5 - 16 bar (Oils May Vary)
 |
Number | Part Name | Material |
| 1 | Valve Body | Brass/Stainless Steel 316 | |
| 2 | Diaphragm | EPDM | |
| 3 | Diaphragm Spring | Stainless Steel 304 | |
| 4 | Valve Cover | Brass/Stainless Steel 304 | |
| 5 | Bolt | Stainless Steel 302 | |
| 6 | O Ring | EPDM | |
| 7 | Midbody | Brass/Stainless Steel 316 | |
| 8 | Spring | Stainless Steel 304 | |
| 9 | Mandril Seal | EPDM | |
| 10 | Spring | Stainless Steel 304 | |
| 11 | Mandril | Stainless Steel 304 | |
| 12 | Fixed Amature | Stainless Steel 1J117 | |
| 13 | Pole | Stainless Steel 304 | |
| 14 | Moving Amature | Stainless Steel 1J117 | |
| 15 | Plunger Tube Seal | PTFE | |
| 16 | Plunger Tube Unit | Stainless Steel 304 + 1J117 | |
| 17 | Baseplate | Plated Steel | |
| 18 | Coil | Enamelled Wire | |
| 19 | Plug | Nylon | |
| 20 | Plate | Aluminium | |
| 21 | Lock Nut | Stainless Steel 302 |
 |
Port Size D (Inch) | A (mm) | B (mm) | H (mm) |
| 3/8 | 66 | 48 | 124 | |
| 1/2 | 66 | 48 | 124 | |
| 3/4 | 75 | 58 | 130 | |
| 1 | 96 | 70 | 143 | |
| 1 1/4 | 131 | 96 | 158 | |
| 1 1/2 | 131 | 96 | 158 | |
| 2 | 165 | 120 | 179 |
Useful Info:
A Solenoid Valve is an mechanical valve that requires an electric current to operate. The electric current passes through a solenoid generating a magnetic field, which in turn raises or lowers a plunger and diaphragm inside the valve.
Pilot operated valves require a continual pressure of at least 0.5 bar in order to operate correctly.
Normally Open valves are open until activated by the solenoid.
