Plasson Compression Tee 90 Female BSP

Plasson Compression Tee 90 Female BSP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Info

Useful Information

Key Features / Tech Specs:

Manufactured by Plasson
Pressure rated up to 16 bar
Sizes available from 16mm x 1/2" to 110mm x 4"
Reducing run sizes also available

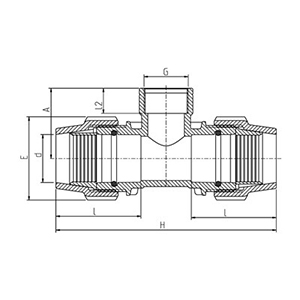

female tee 90

Product Code	d (mm)	G (inch)	A (mm)	H (mm)	E (mm)	I (mm)	I2 (mm)
352398	16	1/2	42	122	39	50	17
352399	16	3/4	41	122	39	50	19
352400	20	1/2	42	144	48	56	18
352401	20	3/4	45	144	48	56	19
352402	25	1/2	45	151	54	58	18
352403	25	3/4	48	151	54	58	19
352404	25	1	53	158	54	58	21
352405	25	1 1/4	64	158	54	58	25
352406	32	3/4	51	177	64	67	19
352407	32	1	54	177	64	67	21
352408	32	1 1/4	65	182	64	67	25
352409	32	1 1/2	71	182	64	67	25
352410	40	1	61	203	82	84	21
352411	40	1 1/4	70	217	82	84	24
352412	40	1 1/2	70	217	82	84	25
352413	40	2	78	217	82	84	30
352414	50	1 1/2	76	244	96	93	25
352415	50	2	80	244	96	93	30
352416	63	1 1/4	95	268	113	113	27
352417	63	1 1/2	95	268	113	113	27
352418	63	2	95	272	113	110	30
352419	75	2	85	342	132	134	30
352420	75	2 1/2	110	370	132	137	35
352421	75	3	110	370	132	137	36
352422	90	3	116	418	152	164	41
352423	110	4	140	516	181	200	52

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
352400	PL Tee 90 Female BSP Thread 20mm x 1/2"	£10.32	40%	£6.19
352401	PL Tee 90 Female BSP Thread 20mm x 3/4"	£10.32	40%	£6.19
352402	PL Tee 90 Female BSP Thread 25mm x 1/2"	£17.02	40%	£10.21
352403	PL Tee 90 Female BSP Thread 25mm x 3/4"	£17.02	40%	£10.21
352404	PL Tee 90 Female BSP Thread 25mm x 1"	£17.02	40%	£10.21
352405	PL Tee 90 Female BSP Thread 25mm x 1 1/4"	£17.02	40%	£10.21
352406	PL Tee 90 Female BSP Thread 32mm x 3/4"	£22.34	40%	£13.40
352407	PL Tee 90 Female BSP Thread 32mm x 1"	£22.34	40%	£13.40
352408	PL Tee 90 Female BSP Thread 32mm x 1 1/4"	£22.34	40%	£13.40
352409	PL Tee 90 Female BSP Thread 32mm x 1 1/2"	£22.34	40%	£13.40
352410	PL Tee 90 Female BSP Thread 40mm x 1"	£36.22	40%	£21.73
352411	PL Tee 90 Female BSP Thread 40mm x 1 1/4"	£39.16	40%	£23.50
352412	PL Tee 90 Female BSP Thread 40mm x 1 1/2"	£39.16	40%	£23.50
352413	PL Tee 90 Female BSP Thread 40mm x 2"	£39.16	40%	£23.50
371668	PL Tee 90 Female BSP Thread 20mm x 3/4" x 16mm	£10.32	40%	£6.19
352414	PL Tee 90 Female BSP Thread 50mm x 1 1/2"	£47.25	40%	£28.35
352415	PL Tee 90 Female BSP Thread 50mm x 2"	£47.25	40%	£28.35
352416	PL Tee 90 Female BSP Thread 63mm x 1 1/4"	£66.29	40%	£39.77
352417	PL Tee 90 Female BSP Thread 63mm x 1 1/2"	£66.29	40%	£39.77
352418	PL Tee 90 Female BSP Thread 63mm x 2"	£66.29	40%	£39.77
352419	PL Tee 90 Female BSP Thread 75mm x 2"	£124.60	40%	£74.76
352420	PL Tee 90 Female BSP Thread 75mm x 2 1/2"	£124.60	40%	£74.76
352421	PL Tee 90 Female BSP Thread 75mm x 3"	£124.60	40%	£74.76
352422	PL Tee 90 Female BSP Thread 90mm x 3"	£148.75	40%	£89.25
352423	PL Tee 90 Female BSP Thread 110mm x 4"	£270.84	40%	£162.50
