PVC Socket Plain
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 8"
- Pressure rating: 15 bar (1/2" to 6") & 9 bar (8")
- Temperature range: 0°C to 60°C
- Connection type: Solvent weld
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu socket provides a simple and reliable way to join two imperial PVCu pipe lengths using a solvent weld connection. Designed for secure system extensions and straight pipe coupling, it offers a long service life thanks to the material’s inherent resistance to corrosion, impact and chemical exposure.
Its smooth internal bore and accurately machined dimensions ensure a consistent fit with matching imperial PVCu pipe. When installed with the correct solvent cement and cleaner, the joint forms a strong, permanent bond suitable for water supply, industrial processes and general engineering applications.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Straightforward pipe coupling: Allows easy connection of two pipe lengths in a straight line
- Solvent weld installation: Creates durable, leak-resistant, permanent joints
- Corrosion-resistant PVCu: Maintains system integrity without rust or scale formation
- Accurate imperial sizing: Ensures consistent compatibility with standard PVCu pipe
- Smooth internal bore: Supports efficient flow and minimises pressure losses
- Lightweight construction: Easy to handle and ideal for quick on-site installation

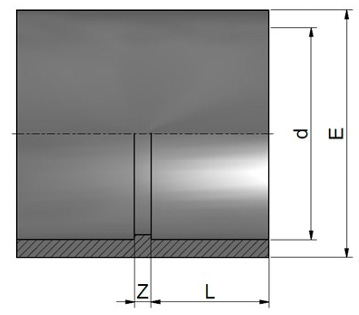

Dimensions
| SKU | Nominal Size / d (") | L (mm) | Z (mm) | E (mm) |
| 356873 | 1/2 | 17 | 3 | 27 |
| 356874 | 3/4 | 20 | 3 | 33 |
| 356875 | 1 | 23 | 3 | 41 |
| 356876 | 1 1/4 | 27 | 3 | 50 |
| 356877 | 1 1/2 | 31 | 3 | 61 |
| 356878 | 2 | 38 | 3 | 76 |
| 359418 | 2 1/2 | 44 | 4 | 90 |
| 356879 | 3 | 51 | 5 | 110 |
| 356880 | 4 | 63 | 6 | 133 |
| 359419 | 5 | 76 | 8 | 161 |
| 356881 | 6 | 90 | 8 | 198 |
| 356882 | 8 | 119 | 11 | 258 |
