A plain 90 degree PVC elbow is an essential fitting designed to join two pieces of PVC pipe at a precise right angle, enabling smooth directional changes in a piping system. This elbow fitting is ideal for various applications, including water distribution, irrigation, and industrial fluid handling. When used with PVC solvent cement and cleaner, the elbow forms a strong, leak-resistant bond that maintains system integrity under pressure.
Key Features
Precise 90° Angle: Connects pipes at a right angle for efficient directional changes without compromising flow.
Durable Material: Made from unplasticised polyvinyl chloride (PVC-U), known for its strength and resistance to corrosion, ensuring long-lasting performance.
Pressure Rating: Rated up to 15 bar for sizes 1/2 inch to 6 inches, and 9 bar for the 8-inch size, making it suitable for a variety of systems.
Easy Installation: Designed for use with PVC solvent cement, ensuring a secure and leak-free joint.
Wide Range of Sizes: Available in multiple sizes to accommodate diverse system requirements.

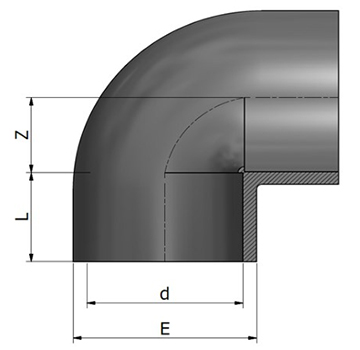

Product Code
Nominal Size (inch)
L (mm)
Z (mm)
E (mm)
356793
1/2
17
11
27
356794
3/4
20
14
33
356795
1
23
17
41
356796
1 1/4
27
23
51
356797
1 1/2
31
28
61
356798
2
38
34
75
359414
2 1/2
44
40
89
356799
3
52
48
106
356800
4
63
58
133
359415
5
76
72
164
356801
6
90
81
198
356802
8
119
115
258
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
