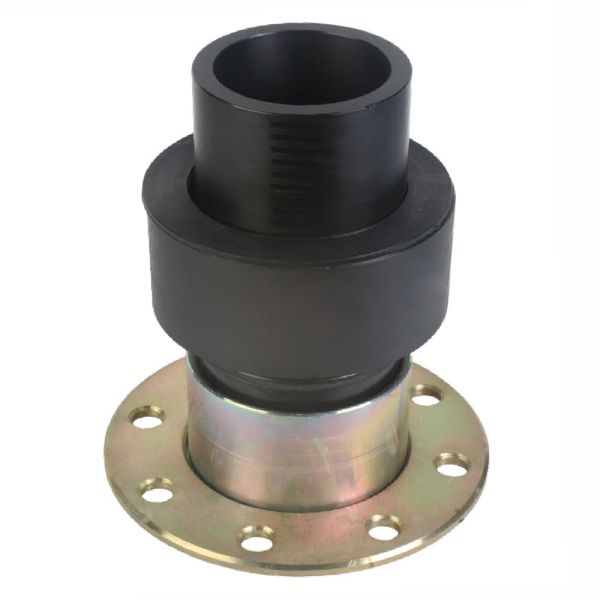

PE Stub Flange Assembly
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Sizes available: 90mm/160mm x 90mm & 110mm/160mm x 110mm
- Pressure rated to 10 bar
- Zinc plated mild steel backing ring
Product Code | Nominal Size (mm) | L (mm) | l1 (mm) | l2 (mm) | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) |
383456 | 90/160 x 90 | 250 | 161 | 96 | 65 | 160 | 200 | 18 |
383457 | 110/160 x 110 | 250 | 173 | 108 | 77 | 180 | 220 | 18 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
