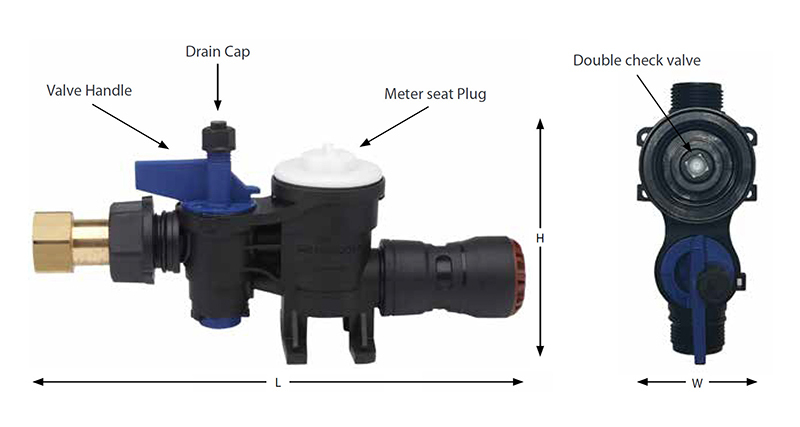

Plasson Multi Meter Connection Point

Loading...
Useful Information

  • Specifically designed for use with Plasson Manifolds for multi-occupancy buildings
  • Quarter turn high flow mains stop valve
  • 1 1/2" Class D concentric meter connection
  • Approved double check valve built in
  • Built in drain point
  • NBR & EPDM sealing for water tight integrity
  • Kiwa UK Regulation 4 (KUKreg4) approved
  • Maximum Operating Pressure: 16 bar
  • Maximum Operating Temperature: 23°C
  • Material: High grade polypropylene copolymer body, EPDM ‘O’ rings and seal
Product Code Length (mm)  Height (mm)  Width (mm)
405215 264 125 80
405216 274 125 80
405217 274 125 80
405218 280 125 80
405219 285 125 80



Note

The meter seat plug is for initial testing but is also suitable for long term use if required. It is 'O' ring sealed, if removed to fit a meter, please also remove the seal and use the seals supplied with the meter. It is a full-flow plug.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
405215PL Meter Connection Point BSPP x BSPP 3/4" x 3/4" £176.00 40%
£105.60
405216PL Meter Connection Point BSPP x Pushfit 3/4" x 22mm £167.20 40%
£100.32
405217PL Meter Connection Point BSPP x Pushfit 3/4" x 28mm £167.20 40%
£100.32
405218PL Meter Connection Point BSPP x Compression 3/4" x 25mm £165.00 40%
£99.00
405219PL Meter Connection Point BSPP x Compression 3/4" x 32mm £165.00 40%
£99.00
