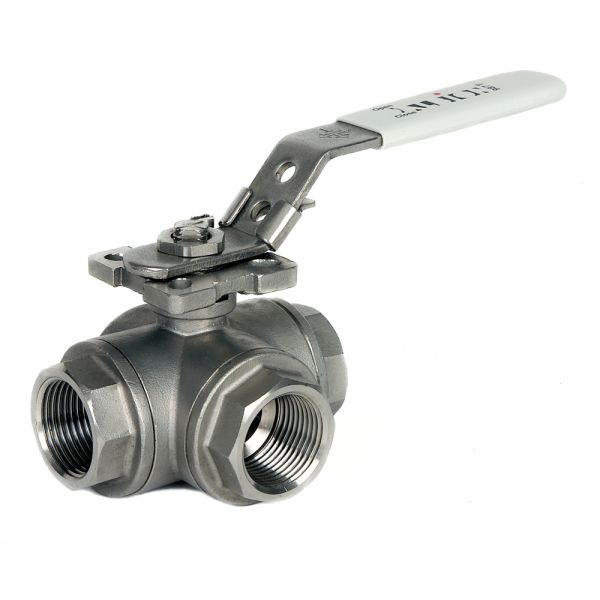

Stainless Steel Ball Valve 3 Way L Port

Loading...
Useful Information

"WRAS

Key Features / Tech Specs:

  • Body Material: Stainless Steel
  • Thread Type: BSPT
  • PTFE/Viton Seals
  • RPTFE (15%) Seats
  • Max. Pressure 82 bar (1/4" - 1")
  • Max. Pressure 69 bar (1 1/4" - 1 1/2")
  • Max. Pressure 62 bar (2")
  • Reduced Bore
  • Locking Device
  • Temperature Range -25°C - 200°C
ALB-art987T-diagram Number Part Name Material
1 Cap CF8M
2 Gasket PTFE
3 Ball Seat R-PTFE (15%)
4 Ball Stainless Steel 316
5 Body CF8M
6 Stem Stainless Steel 316
7 Thrust Washer PTFE
8 O Ring Viton
9 Stem Packing PTFE
10 Stem Ring Stainless Steel 316
11 Bellevlle Washer Stainless Steel 304 (301)
12 Nut Stainless Steel 304
13 Plate Washer Stainless Steel 304
14 Nut Stopper Stainless Steel 304
15 Lock Device Stainless Steel 304
16 Handle Stainless Steel 304
17 Handle Sleeve Plastic
18 Stop Pin Stainless Steel 304
Product Code Thread (Inch) d (mm) L (mm) H (mm) W (mm) h (mm) F (mm) A (mm) C (mm) Weight (Kgs)
353913 1/4 9.5 75 66 130 36.8 37.5 57.5 9 0.7
353914 3/8 11 75 66 130 36.8 37.5 57.5 9 0.67
353915 1/2 12 75 66 130 36.8 37.5 57.5 9 0.63
353916 3/4 15 85 72 161 41.2 42.5 65.5 11 0.94
353917 1 20 100 77 161 46.5 50 79 11 1.39
353918 1 1/4 25 122 92 203 56 61 97 14 2.91
353919 1 1/2 32 131 96 203 60 65.5 106.5 14 3.66
353920 2 40 158 107 203 70.5 79 129 14 6.31

ALB-art988-L-Graph



Useful Info:

Available in sizes up to 2".



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
353913SS Ball Valve 3 Way L Port BSP Taper F/F/F 1/4" £82.71 50%
£41.36
353914SS Ball Valve 3 Way L Port BSP Taper F/F/F 3/8" £82.71 50%
£41.36
353915SS Ball Valve 3 Way L Port BSP Taper F/F/F 1/2" £82.71 50%
£41.36
353916SS Ball Valve 3 Way L Port BSP Taper F/F/F 3/4" £106.42 50%
£53.21
353917SS Ball Valve 3 Way L Port BSP Taper F/F/F 1" £147.79 50%
£73.90
353918SS Ball Valve 3 Way L Port BSP Taper F/F/F 1 1/4" £260.30 50%
£130.15
353919SS Ball Valve 3 Way L Port BSP Taper F/F/F 1 1/2" £319.28 50%
£159.64
353920SS Ball Valve 3 Way L Port BSP Taper F/F/F 2" £527.28 50%
£263.64
