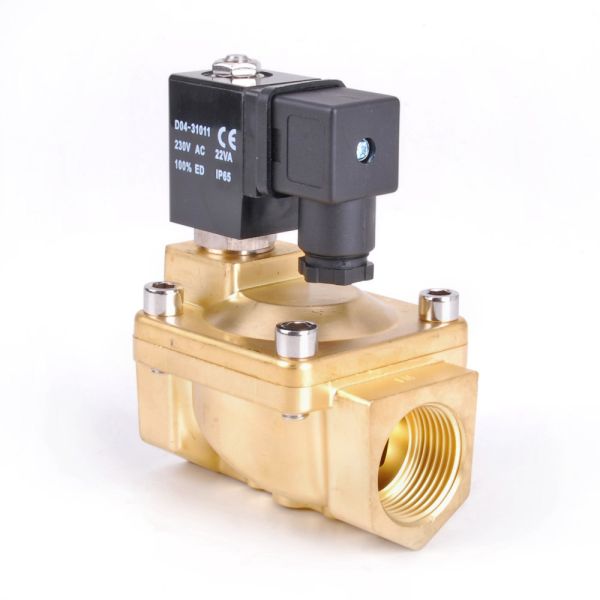

Pilot Operated Normally Closed EPDM

Key Features / Tech Specs / Dimensions:

• Material: Brass
• 2/2 Way Valve Configuration
• Sizes Up to 2"
• Normally Closed valves
• EPDM Diaphragm
• Temperature Range 0°C - 120°C
• Pressure Range 0.5 - 16 bar (Oils May Vary)

	Number	Part Name	Material
	1	Valve Body	Brass/Stainless Steel 316
	2	Diaphragm	EPDM
	3	Diaphragm Spring	Stainless Steel 304
	4	Valve Cover	Brass/Stainless Steel 304
	5	Bolt	Stainless Steel 302
	6	Pilot Seal	EPDM
	7	Pilot	Stainless Steel 1J117
	8	Pilot Spring	Stainless Steel 304
	9	O Ring	EPDM
	10	Plunger Tube Unit	Stainless Steel 304 + 1J117
	11	Coil	Enamelled Wire
	12	Plug	Nylon
	13	Washer	Stainless Steel 302
	14	Lock Nut	Stainless Steel 302



	Port Size G (Inch)	A (mm)	B (mm)	H (mm)
	3/8	66	48	112
	1/2	66	48	112
	3/4	75	58	118
	1	96	70	131
	1 1/4	131	96	146
	1 1/2	131	96	146
	2	165	120	167



Useful Info:

A Solenoid Valve is an mechanical valve that requires an electric current to operate. The electric current passes through a solenoid generating a magnetic field, which in turn raises or lowers a plunger and diaphragm inside the valve.

Pilot operated valves require a continual pressure of at least 0.5 bar in order to operate correctly.

Normally closed valves are not open until activated by the solenoid.
