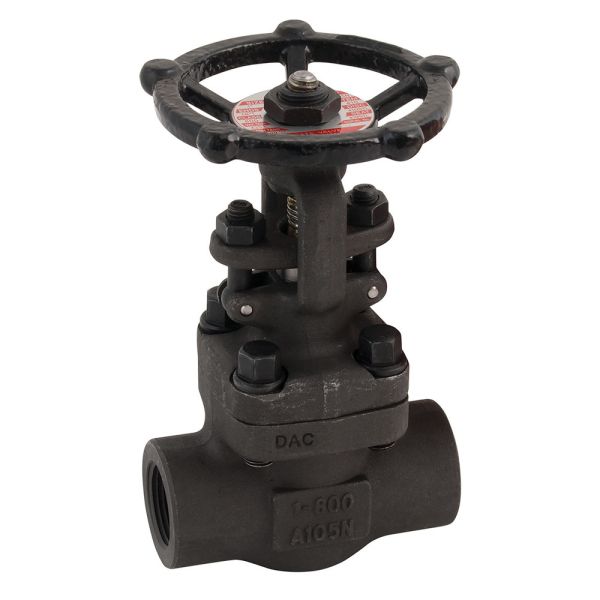

Forged Steel Globe Valve
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Forged Steel
- Pressure rated to 138 bar
- Operating temperature: -29°C to +425°C
- NPT threads (female/female)
- ATEX Approved
- Conforms to BS 5352
|
|

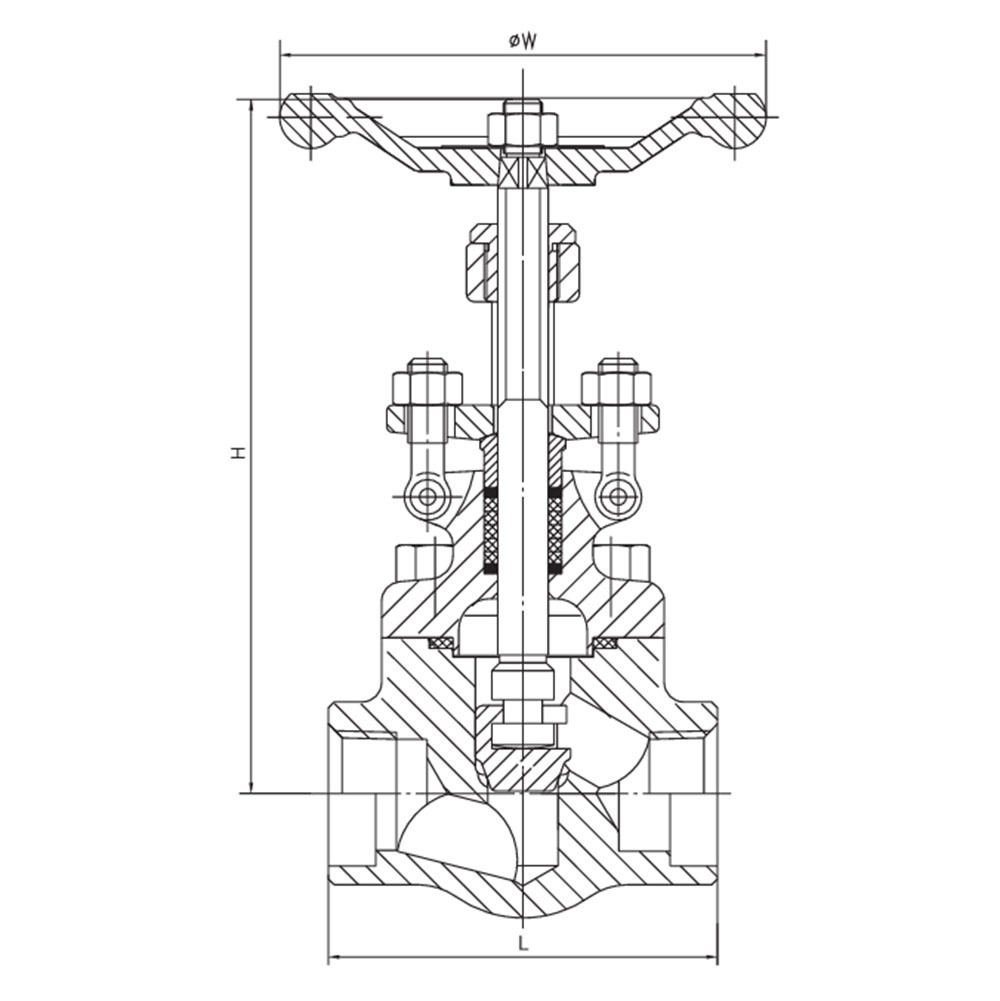

Number | Part Name | Material |
| 1 | Body | A105, Trim 5 | |
| 2 | Disc | AISI 420 + STL | |
| 3 | Stem | AISI 410 | |
| 4 | Gasket | AISI 304 + Graphite | |
| 5 | Bonnet | A105 | |
| 6 | Bolt | A193 B7 | |
| 7 | Packing | Flexible Graphite + Carbon Fibre | |
| 8 | Pin | AISI 420 | |
| 9 | Packing Bland | AISI 420 | |
|
|
10 | Eye Bolt | A193 BB |
|
|
11 | Gland Flange | A105 |
|
|
12 | Hex Nut | A194 B |
|
|
13 | Yoke Nut | AISI 410 |
|
|
14 | Handwheel | A197 |
|
|
15 | Name Plate | Aluminium |
|
|
16 | Seal | A105 + STL |
| Product Code | DN | W | H | Weight (Kg) |
| 409603 | 15 | 79 | 158 | 2.20 |
| 409604 | 20 | 92 | 163 | 2.40 |
| 409605 | 25 | 110 | 193 | 4.20 |
| 409614 | 32 | 152 | 250 | 6 |
| 409606 | 40 | 152 | 250 | 8 |
| 409607 | 50 | 172 | 291 | 12.80 |
Useful Info:
Features: Reduced bore. Forged steel body. NPT threads. Class 800 rated
This bidirectional Globe Valve can be used to shut off flow in a system as well as having a degree of flow control.
