Forged Steel Gate Valve

Loading...
Useful Information

Key Features / Tech Specs / Dimensions:

  • Material: Forged Steel
  • Pressure rated to 138 bar
  • Operating temperature: -29°C to +425°C
  • NPT threads (female/female)
  • ATEX Approved
  • Conforms to API 602

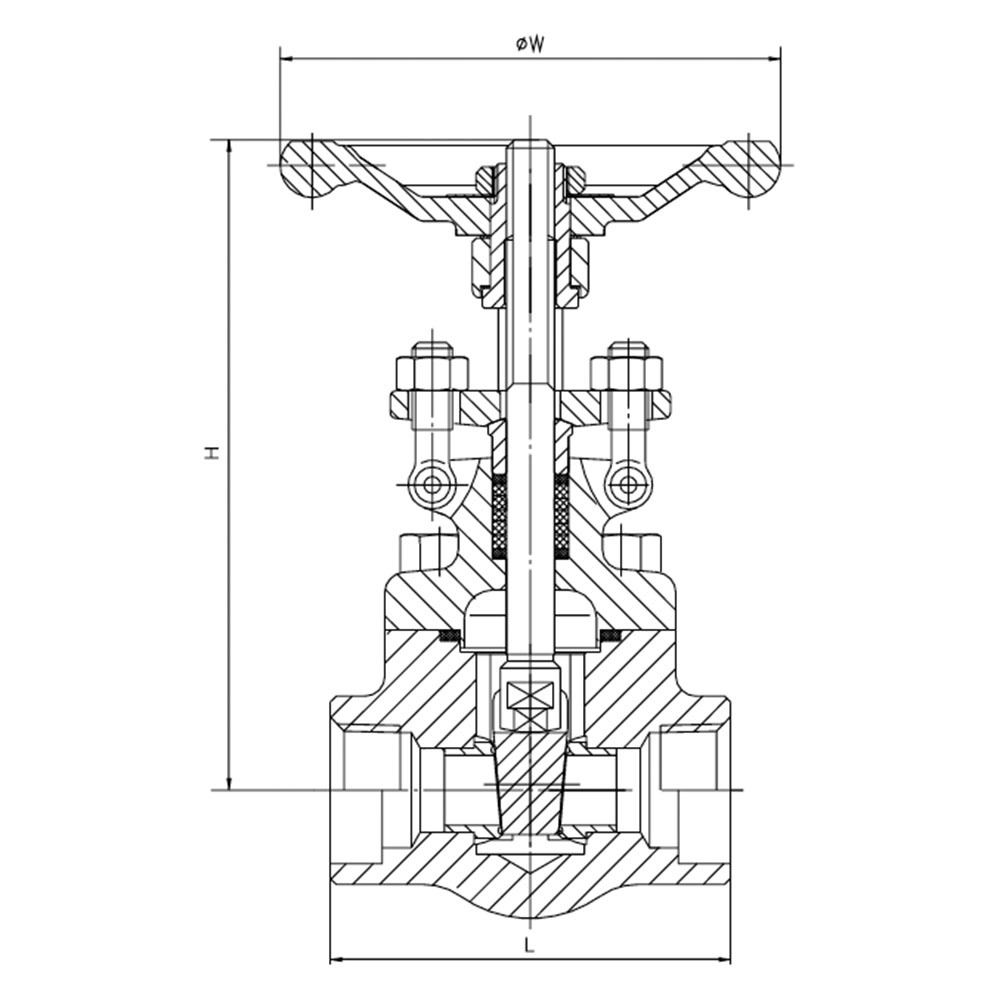

Number Part Name Material
1 Body A105, Trim 5
2 Seat A182 F6A + STL
3 Gate A182 F6A + STL
4 Stem AISI 410
5 Gasket AISI 304 + Graphite
6 Bonnet A105
7 Bolt Flexible Graphite + Carbon Fibre
8 Packing AISI 420
9 Pin AISI 420



 10  Packing Gland A193 BB



 11  Eye Bolt A105



 12  Gland Flange A194 B



 13  Hex AISI 410



 14  Washer  AISI 410



 15 Handwheel A197



 16  Name Plate Aluminium



Product Code DN W H Weight (Kg)
409598 15 79 151 2.20
409599 20 92 158 2.40
409600 25 110 185 4.20
409615 32 120 239 6
409601 40 120 243 7
409602 50 140 279 11



Useful Info:

Features: Forged steel body. NPT threads. Class 800 rated.

This bidirectional Gate Valve can be used to shut off flow in a system as well as having a degree of flow control.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
