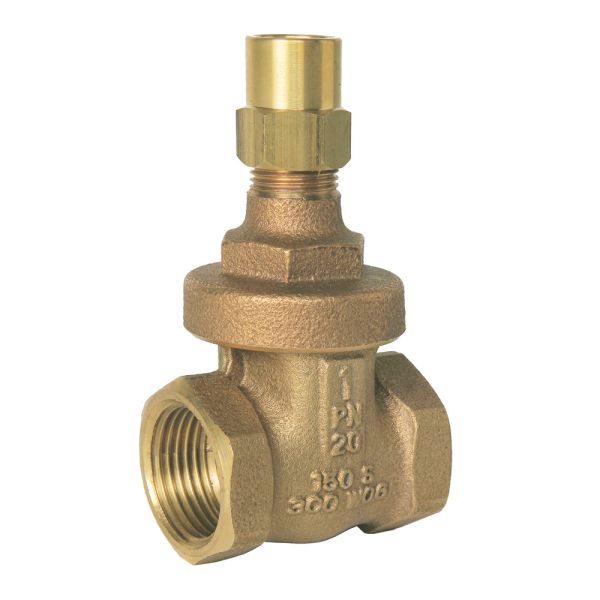

DZR Brass Gate Valve Lockshield
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: DZR Brass
- BSPT Female Threads
- Pressure rated to up to 20 bar
- Operating temperature range of -10°C to 180°C
- Lock Shield
- BS5154
 |
Number | Part Name | Material |
| 1 | Body | DZR Brass | |
| 2 | Wedge | DZR Brass | |
| 3 | Bonnet | DZR Brass | |
| 4 | Lock Nut | Brass | |
| 5 | Stem Packing | PTFE | |
| 6 | Gland | Brass | |
| 7 | Packing Nut | Brass | |
| 8 | Stem | DZR Brass |
| Product Code | Thread DN (inch) | L (mm) | H (mm) | S (mm) | h (mm) | D (mm) |
| 353688 | 1/2 | 43 | 63.5 | 6.3 | 4.5 | 15 |
| 353689 | 3/4 | 46 | 67.3 | 6.3 | 4.5 | 15 |
| 353690 | 1 | 52 | 68.9 | 6.3 | 4.5 | 15 |
| 353691 | 1 1/4 | 65 | 87.7 | 6.3 | 4.5 | 16.5 |
| 353692 | 1 1/2 | 66 | 96.7 | 8 | 4.5 | 19.5 |
| 353693 | 2 | 82.5 | 114.5 | 8 | 4.5 | 19.5 |
Useful Info:
This Dezincification resistant Brass Gate Valve allows you to connect BSPT male threads while being able to securely shut off flow from one side to the other.
