Stainless Steel Metering Station 25 Bar

Loading...
Useful Information

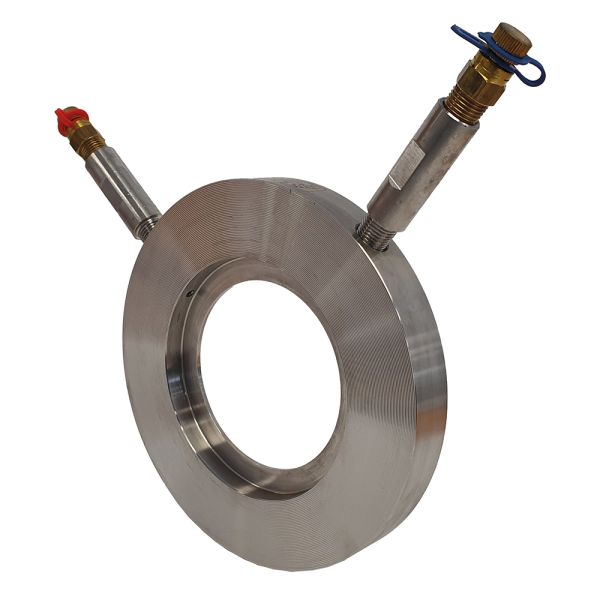

Stainless steel wafer pattern orifice plate, fixed orifice with ±5% accurate flow measurement. Fits between BS EN1092 flanges, can be close coupled to a double regulating valve and is supplied with 2 extensions and test points.

Material Stainless Steel
Standards BS 7350
Max. Pressure 25 bar
Operating Temperature -10 to +120°C



ALB-Art-270-diagram Number Part Material
1 Body 304 Stainless Steel
2 Extension 304 Stainless Steel
3 Pressure Test Point Brass



Product Code Size (Inch) DN (mm) A (mm) B (mm) C (mm) Weight (Kg)
402799 2" 50 22 108 136 1.1
402800 2 1/2" 65 22 127 145 1.3
402801 3" 80 22 142 153 1.7
402802 4" 100 22 168 166 2.2
402803 5" 125 22 194 179 3.3
402804 6" 150 22 224 194 3.6
402805 8" 200 22 284 224 5.5
402806 10" 250 22 340 252 6.1
402807 12" 300 22 400 282 11.0
