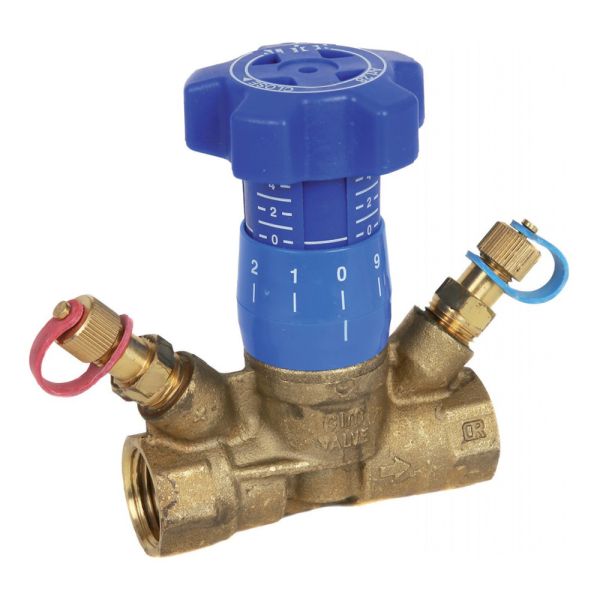

DZR Brass Variable Orifice Commissioning Valve
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: Brass (CW602N-M)
- Pressure rated to 25 bar
- Operating temperature range: -10°C to 120°C
- Screwed BSPP Threads
- Double regulating device
- Supplied with 2 test points
- EPDM disk seating
 |
Number | Part | Material |
| 1 | Body | DZR Brass | |
| 2 | Bonnet | DZR Brass | |
| 3 | Stem | DZR Brass | |
| 4 | Gasket | EPDM | |
| 5 | Shutter | DZR Brass | |
| 6 | Handwheel | Nylon 6 | |
| 7 | Screw | DZR Brass | |
| 8 | O-Ring | EPDM | |
| 9 | Binder Point | DZR Brass | |
| 10 | O-Ring | EPDM |
| Product Code | Size (Inch) | DN (mm) | A (mm) | B (mm) | C (mm) | C1 (mm) | D (mm) | CH (mm) | Weight (Kg) |
| 353432 | 1/2" | 15 | 50 | 87.5 | 77 | 106 | 17 | 25 | 0.38 |
| 353433 | 3/4" | 20 | 50 | 89.5 | 80 | 107 | 18.5 | 31 | 0.44 |
| 353434 | 1" | 25 | 50 | 91.5 | 87 | 107 | 21 | 38 | 0.535 |
| 353435 | 1 1/4" | 32 | 50 | 99 | 108 | 123 | 22.5 | 48 | 0.96 |
| 353436 | 1 1/2" | 40 | 50 | 99 | 115 | 129 | 23 | 55 | 1.12 |
| 353437 | 2" | 50 | 50 | 100 | 124 | 132 | 26.5 | 66 | 1.35 |
