DZR Brass Double Regulating Valve Threaded F

Loading...
Useful Information

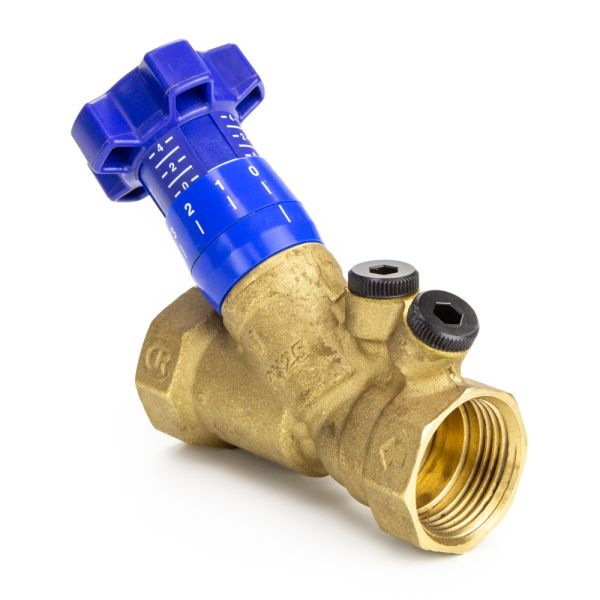

WRAS approved DZR double regulating valve with female BSPP (ISO 228/1) threaded ends and 360° marked handwheel with shut-off function and digital scale lock function.

Material DZR Brass
Standards BS 7350 / BS 5154
Max. Pressure 25 bar
Operating Temperature -10 to +120°C



Alb-Art-23-drv-threaded-diagram

Number Part Name Material
1 Valve Body DZR Brass - CW602N-M
2 Bonnet DZR Brass - CW602N-M
3 Stem for Shutter DZR Brass - CW602N-M
4 Adaptor for Shutter Brass
5 Shutter Gasket EPDM
6 Disc DZR Brass - CW602N-M
7 Fixed Index POM
8 Entrainer Nylon 6
9 Knob Nylon 6
10 Handwheel Plastic
11 Tenth Turn Index POM
12 Memory Screw Steel
13 Stem O-Ring EPDM
14 Bonnet O-Ring EPDM
15 Cap Nylon
16 O-Ring EPDM
17 Fixed Orifice DZR Brass - CW602N-M



Product Code Size (inch) A (mm) B (mm) C (mm) C1 (mm) D (mm) CH (mm) Kv Weight (Kg)
402832 1/2 50 83 72.5 107 12.5 25 2.00 0.36
402833 3/4 50 82 82 110.5 12.5 31 3.88 0.42
402834 1 50 84 95 124 14.5 38 7.28 0.50
402835 1 1/4 50 87 122 131 16 47 13.39 0.85
402836 1 1/2 50 107 138 149 16 55 18.60 1.33
402837 2 50 103 161 164 16 66 30.10 1.46
