Ductile Iron Resilient Seat Gate Valve Flanged

Loading...
Useful Information

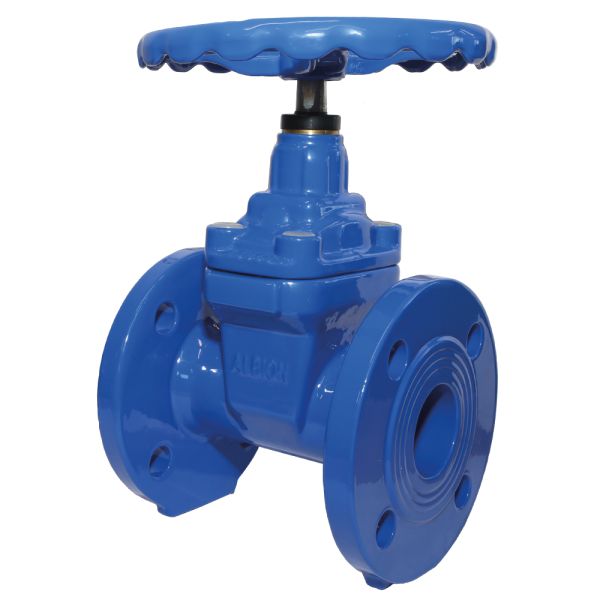

WRAS approved ductile iron resilient seat gate valve with flange mounting to EN1092-2 PN16 and internal and external fusion bonded epoxy coating.

Material Ductile Iron
Standards BS 5163 (Type B cover and stem)
EN558-1 Series 3 (face to face length)
Max. Pressure 16 bar
Operating Temperature 0 to +80°C



Alb-Art-231-seat-gate-valve-flanged-diagram



Number Part Name Material
1 Body Ductile Iron GGG50 - BS EN2789
2 Disc Ductile Iron GGG50+ EPDM (WRAS) - BS EN2789
3 Stem Nut Brass HPb59-1 - BS2872-2874
4 Bonnet Gasket EPDM (WRAS) - ISO4633
5 Stem Stainless Steel 316 - BS970
6 Bonnet Ductile Iron GGG50 - BS EN2789
7 Holding Ring Brass HPb59-1 - BS2872-2874
8 O-Ring EPDM (WRAS) - ISO4633
9 Gland Ductile Iron GGG50 - BS EN2789
10 Handwheel Ductile Iron GGG50 - BS EN2789
11 Screw Stainless Steel 316 - BS970
12 Dust Ring EPDM (WRAS) - ISO4633
13 Gland Bolts Stainless Steel 316 - BS970
14 O-Ring EPDM (WRAS) - ISO4633
15 Washers Nylon 66
16 O-Ring EPDM (WRAS) - ISO4633
17 Bonnet Bolts Stainless Steel 316 - BS970
18 Cap Top Ductile Iron GGG50 - BS EN2789



Product Code Size (inch) L (mm) H (mm) M (mm) h1 (mm) D (mm) K (mm) G (mm) D (mm) b (mm) f (mm) Weight (Kg)
402838 2 178 215 200 285 165 125 99 4-
Ø19
19 3 9
402839 2 1/2 190 235 200 300 185 145 118 4-
Ø19
19 3 12
402840 3 203 265 254 320 200 160 132 8-
Ø19
19 3 14
402841 4 229 315 254 390 220 180 156 8-
Ø19
19 3 19
402842 5 254 350 315 430 250 210 184 8-
Ø19
19 3 24
402843 6 267 385 315 470 285 240 211 8-
Ø23
19 3 31
402844 8 292 485 315 560 340 295 266 12-
Ø23
20 3 52
402845 10 330 600 406 680 405 355 319 12-
Ø28
22 3 87
402846 12 356 680 406 770 460 410 370 12-
Ø28
24.5 4 116
