Ductile Iron Double Regulating Valve 25 Bar
Useful Information

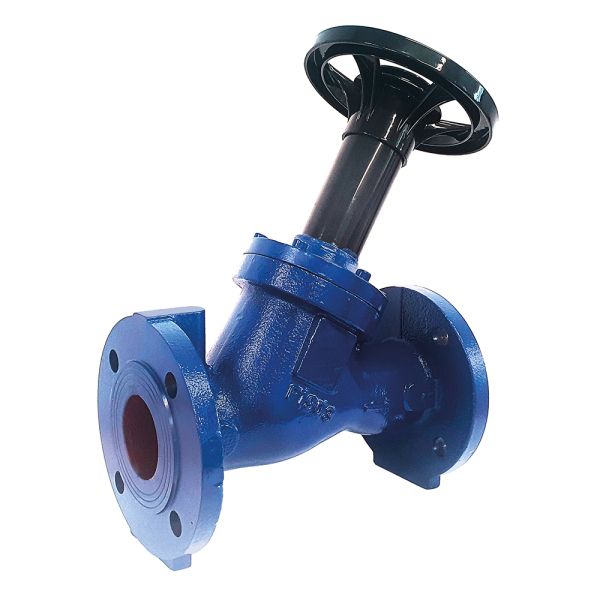

Ductile iron PN25 Double Regulating Valve for flange mounting conforming to BS EN1092 with EPDM cone seating ensuring tight shut off. It has a position indicator and is supplied with 2 test points and extensions.
| Material | Ductile Iron |
| Standards | BS 5152 / BS 7350 |
| Max. Pressure | 25 bar |
| Operating Temperature | -10 to +120°C |
Â
 |
Number | Part Name | Material |
| 1 | Body | Ductile Iron | |
| 2 | Cover | Ductile Iron | |
| 3 | Disc | Ductile Iron + EPDM | |
| 4 | Plug | Carbon Steel | |
| 5 | Shaft | Stainless Steel 410 | |
| 6 | Handwheel | Aluminium Alloy /Carbon Steel |
Â
| Product Code | Size (Inch) | DN (mm) | L (mm) | D (mm) | K (mm) | d (mm) | n-ØP (mm) | f (mm) | T (mm) | Weight (Kg) |
| 402791 | 2" | 50 | 230 | 165 | 125 | 99 | 4-Ø19 | 3 | 19 | 14.4 |
| 402792 | 2 1/2" | 65 | 290 | 185 | 145 | 118 | 8-Ø19 | 3 | 19 | 18.4 |
| 402793 | 3" | 80 | 310 | 200 | 160 | 132 | 8-Ø19 | 3 | 19 | 24.2 |
| 402794 | 4" | 100 | 350 | 235 | 190 | 156 | 8-Ø23 | 3 | 19 | 34.5 |
| 402795 | 5" | 125 | 400 | 270 | 220 | 184 | 8-Ø28 | 3 | 19 | 48.3 |
| 402796 | 6" | 150 | 480 | 300 | 250 | 211 | 8-Ø28 | 3 | 20 | 64.4 |
| 402797 | 8" | 200 | 600 | 360 | 310 | 274 | 12-Ø28 | 3 | 22 | - |
| 402798 | 10" | 250 | 730 | 425 | 370 | 330 | 12-Ø31 | 3 | 24.5 | - |
| 402799 | 12" | 300 | 850 | 485 | 430 | 389 | 16-Ø31 | 4 | 27.5 | - |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
