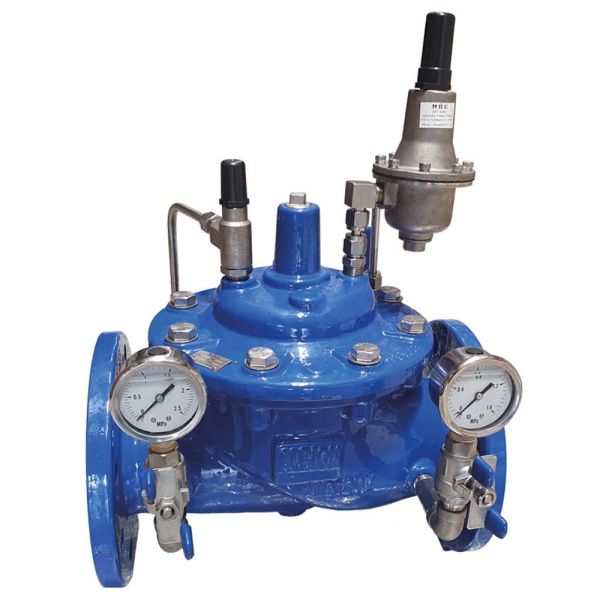

Pilot Operated Adjustable Pressure Reducing Valve
Useful Information
Key Features / Tech Specs & Dimensions:
Material | Ductile Iron |
Max. Pressure | 16 bar |
Working Temperature | 0°C to 80°C |
- Automatic Control Valve
- Suitable for potable water applications
- Pressure adjusted by Integral Pilot Valve
- Conforms to BS EN 558-1 Series 1
- Flange conforms to BS EN 1092 PN16
- Available flanged PN25
- Stainless steel pilot tubing and valves
- Fully WRAS Approved Valve - Cert No. 2105035
![]() |

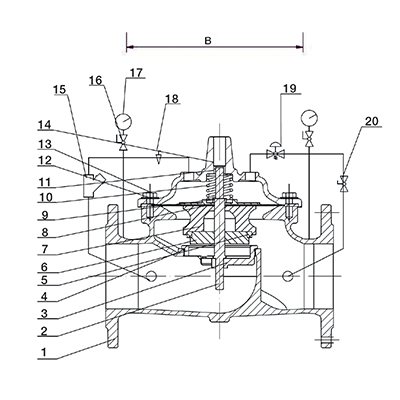

Number | Part Name | Material |
1 | Body | Ductile Iron | |
2 | Stem | Stainless Steel 304 | |
3 | Seat | Stainless Steel 304 | |
4 | O-Ring | NBR | |
5 | Disc Ring | NBR | |
6 | Disc Retainer | Ductile Iron | |
7 | Disc Guide | Ductile Iron | |
8 | Diaphragm | EPDM | |
9 | Diaphragm Washer | Ductile Iron | |
10 | Spring | Stainless Steel 304 | |
11 | Cover Bearing | Stainless Steel 304 | |
12 | Screw | Stainless Steel 304 | |
13 | Washer | Stainless Steel 304 | |
14 | Cover | Ductile Iron | |
15 | Strainer | Stainless Steel 304 | |
16 | Ball Valve | Stainless Steel 304 | |
17 | Gauge | Stainless Steel 304 | |
18 | Needle Valve | Stainless Steel 304 | |
19 | Pilot Valve | Stainless Steel 304 | |
20 | Ball Valve | Stainless Steel 304 |

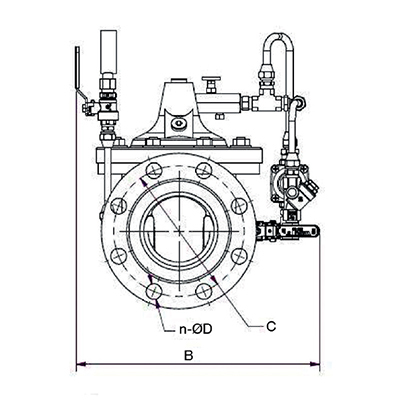

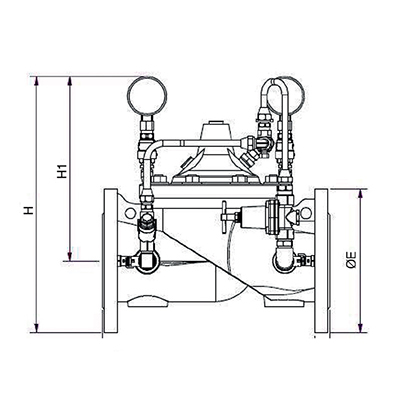

Product Code | Size (Inch) | DN (mm) | L (mm) | E (mm) | C (mm) | n-d | B (mm) | H (mm) | H1 (mm) | Weight (Kg) |
405546 | 2" | 50 | 230 | 165 | 125 | 4-19 | 265 | 452 | 369 | 13 |
405547 | 2 1/2" | 65 | 290 | 185 | 145 | 4-19 | 300 | 462 | 370 | 17 |
405548 | 3" | 80 | 310 | 200 | 160 | 8-19 | 310 | 470 | 370 | 23 |
405549 | 4" | 100 | 350 | 220 | 180 | 8-19 | 320 | 483 | 373 | 30 |
405550 | 5" | 125 | 400 | 250 | 210 | 8-19 | 350 | 498 | 373 | 65 |
405551 | 6" | 150 | 480 | 285 | 240 | 8-23 | 385 | 513 | 376 | 69 |
405552 | 8" | 200 | 600 | 340 | 295 | 12-23 | 440 | 540 | 376 | 132 |
405553 | 10" | 250 | 730 | 405 | 355 | 12-28 | 505 | 573 | 378 | 315 |
405554 | 12" | 300 | 850 | 460 | 410 | 12-28 | 560 | 598 | 396 | 420 |
Pilot Valve
Fitted with standard Pilot Valve:
0.70 to 12.00 Bar (10 to 175 PSI)
Factory set to 3.5 Bar (50 PSI)
Other Pilot Valves available:
1.40 to 12.00 Bar (20 to 175 PSI)
2.10 to 20.00 Bar (30 to 300 PSI)
![]() |

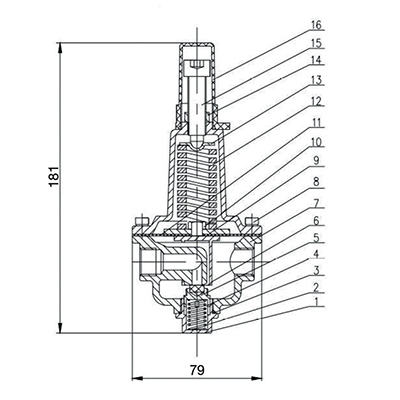

Number | Part Name | Material |
1 | Plug | Stainless Steel 304 | |
2 | Spring | Stainless Steel 304 | |
3 | O-Ring | NBR | |
4 | Seat | Stainless Steel 304 | |
5 | Disc | NBR | |
6 | Yoke | Stainless Steel 304 | |
7 | Body | Stainless Steel 304 | |
8 | Screw | Stainless Steel 304 | |
9 | Diaphragm Washer | Stainless Steel 304 | |
10 | Nut | Stainless Steel 304 | |
11 | Diaphragm | EPDM | |
12 | Spring | Stainless Steel 304 | |
13 | Spring Holder | Stainless Steel 304 | |
14 | Locking Nut | Stainless Steel 304 | |
15 | Adjusting Screw | Stainless Steel 304 | |
16 | Cap | ABS |
