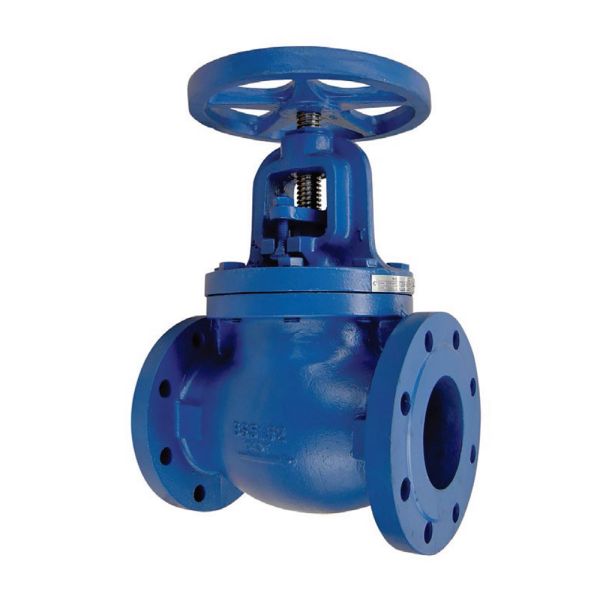

Globe Valve BS 5152
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: Cast Iron
- Flange Mount PN16
- BS EN558-1 Series 10
- Conforms To BS5152
- Working Temperature -10°C - 200°C
- Max. Pressure 16 bar
 |
Number | Part Name | Material |
| 1 | Body | Cast Iron | |
| 2 | Body Ring | Cast Bronze | |
| 3 | Disc Ring | Cast Bronze | |
| 4 | Disc | Cast Iron | |
| 5 | Stop Washer | Stainless Steel 304 | |
| 6 | Nut | Cast Brass | |
| 7 | Stem | Brass | |
| 8 | Flange Gasket | Graphite | |
| 9 | Bolt | Cast Iron | |
| 10 | Packing | Graphite | |
| 11 | Bonnet | Cast Iron | |
| 12 | Gland | Ductile Iron | |
| 13 | Nut | Steel | |
| 14 | Bolt | Steel | |
| 15 | Stem Nut | Cast Brass | |
| 16 | Handwheel | Cast Iron | |
| 17 | Washer | Steel | |
| 18 | Nut | Steel |
| Product Code | Size (Inch) | D (Inch) | DN (mm) | D1 (mm) | D2 (mm) | E (mm) | F (mm) | L (mm) | L2 (mm) | n-d |
| 373117 | 2" | 50 | 165 | 125 | 99 | 20 | 3 | 203 | 178 | 4-19 |
| 373118 | 2 1/2" | 65 | 185 | 145 | 118 | 17.5 | 3 | 216 | 178 | 4-19 |
| 373119 | 3" | 80 | 200 | 160 | 132 | 19.1 | 3 | 241 | 200 | 8-19 |
| 373120 | 4" | 100 | 220 | 180 | 156 | 23.9 | 3 | 292 | 254 | 8-19 |
| 373121 | 5" | 125 | 250 | 210 | 184 | 23.9 | 3 | 330 | 300 | 8-19 |
| 373122 | 6" | 150 | 285 | 240 | 211 | 25.4 | 3 | 356 | 300 | 8-23 |
| 373123 | 8" | 200 | 340 | 295 | 266 | 28.6 | 3 | 495 | 348 | 12-23 |
| 373124 | 10" | 250 | 405 | 355 | 319 | 30.2 | 3 | 622 | 400 | 12-28 |
| 373125 | 12" | 300 | 460 | 410 | 370 | 31.8 | 4 | 698 | 457 | 12-28 |
