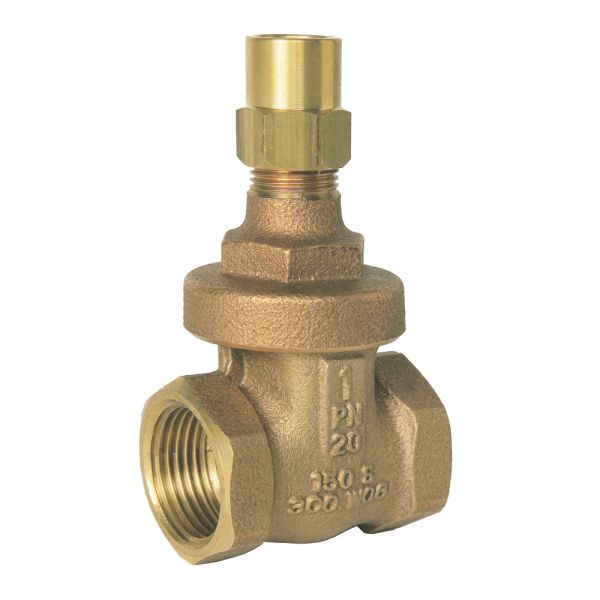

Bronze Gate Valve Lockshield

Key Features / Tech Specs / Dimensions:

• Material: Bronze
• Female Screwed BSPT Thread
• Max. Pressure 20 bar
• Operating temperature range of -10°C to 180°C
• Screwed Bonnet
• Wras Approved
• Lockshield
• PN20 Rated
• BS 5154 (BS EN12288)

Useful Info:

This Gate Valve allows you to connect male BSPT threads while being able to securely shut off flow from one side of the fitting to the other.
