Brass Short Spigot Drain Cock
Useful Information

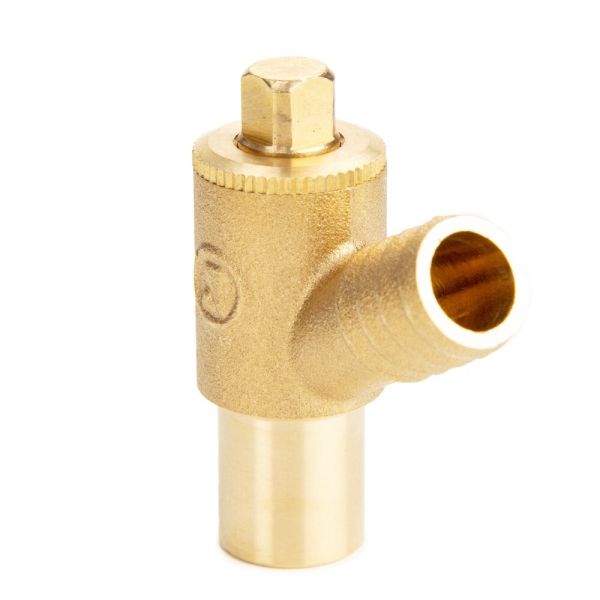

WRAS approved brass drain cock with short male spigot and barbed end for hose connection.
| Material | Brass - HPb59-T |
| Standards | BS 2879/2 Type A |
| Pressure Rating | 16 bar |
| Operating Temperature | -20°C to +90°C |
Â
 |
Number | Part Name | Material |
| 1 | Body | Brass - HPb59-T | |
| 2 | Bonnet | Brass - HPb59-T | |
| 3 | Stem | Brass - HPb59-T | |
| 4 | Baffle | Brass - HPb59-T | |
| 5 | Washer | EPDM | |
| 6 | Lock Nut | Brass - HPb59-T | |
| 7 | O-Ring | EPDM |
Â
| Product Code | DN | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | L (mm) | Weight (Kgs) |
| 402751 | 15mm | 35 | Ø9.5 | 15.5 | Ø14 | Ø9.7 | 51.5-56 | 0.07 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Approvals:
 |
WRAS approved Approval number 1812115 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
