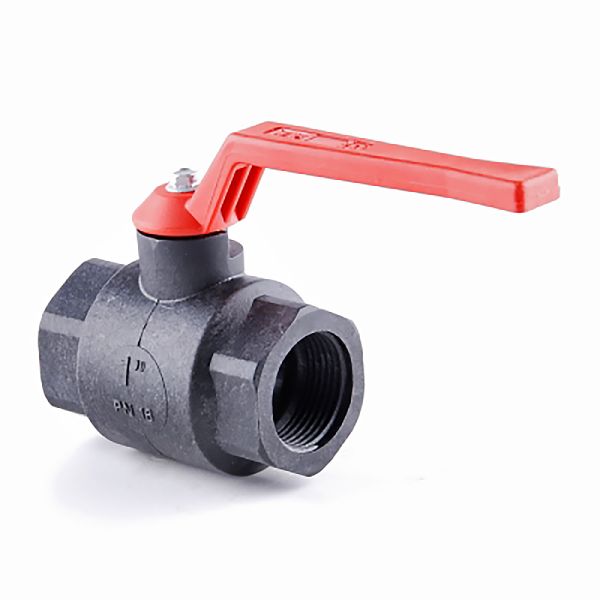

Lever PP Ball Valve Threaded
Useful Information
Key Features / Tech Specs & Dimensions:
- Materials: polypropylene (body), nylon PA6 (handle), brass (ball)
- Pressure rated to 16 bar
- Operating temperature range: 0°C to 75°C
- Female BSP threads
- Not suitable for gases
| Product Code | Diameter (inch) | L (mm) | H (mm) | A (mm) | B (mm) | C (mm) |
| 359205 | ⅜ | 80 | 46 | 10 | 14 | 52 |
| 359206 | ½ | 100 | 55 | 15 | 15.5 | 61 |
| 359207 | ¾ | 100 | 59 | 20 | 17.5 | 71.5 |
| 359208 | 1 | 120 | 70 | 25 | 20 | 83 |
| 359209 | 1¼ | 120 | 76 | 32 | 23 | 98 |
| 359210 | 1½ | 150 | 98 | 40 | 23 | 107 |
| 359211 | 2 | 150 | 104 | 50 | 29 | 131 |
Â
Useful Info:
These polypropylene ball valves are ideal for use in water conveyance and irrigation applications.
The single body design ensures no leak-through and the weight-volume ratio maintains a reliable seal with plastic pipes and provides excellent mechanical resistance.
These ball valves are resistant to atmospheric agents and UV.
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
